Sandvik Coromant

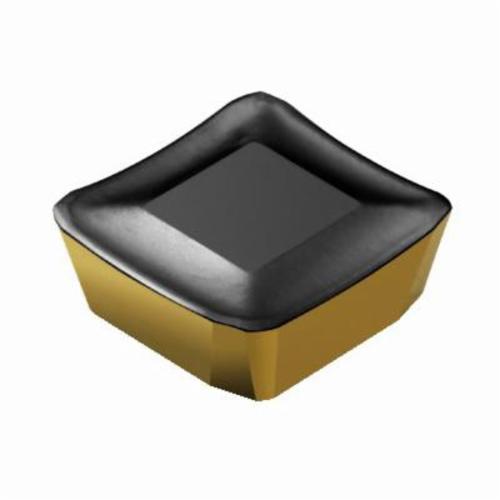

Sandvik Coromant 5751399 ModulMill Milling Insert, SMKR 42E2 R-WH 4240 ANSI, S-Square, SPKR Insert, SPKR 12 03 ED R-WH 4240 ISO
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5751399 ModulMill Milling Insert, SMKR 42E2 R-WH 4240 ANSI, S-Square, SPKR Insert, SPKR 12 03 ED R-WH 4240 ISO
SKU1239800
MFGR #5751399
Your Cost: $25.23/ea
List: Sandvik Coromant Milling Insert, Series: ModulMill, SPKR Insert, S-Square, Manufacturer's Grade: 4240, ANSI Code: SMKR 42E2 R-WH 4240, ISO Code: SPKR 12 03 ED R-WH 4240, Carbide, CVD Coated, Material Grade: K/M/P
Sandvik Coromant Milling Insert, Series: ModulMill, SPKR Insert, S-Square, Manufacturer's Grade: 4240, ANSI Code: SMKR 42E2 R-WH 4240, ISO Code: SPKR 12 03 ED R-WH 4240, Carbide, CVD Coated, Material Grade: K/M/P
Alternate Catalog Number SMKR 42E2 R-WH 4240 ANSI Code SMKR 42E2 R-WH 4240 Catalog Number 5751399 Country of Origin JP Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1600 lb Hand of Insert Right ISO Code SPKR 12 03 ED R-WH 4240 Item Group 150 Lead Angle 45 ° Length 1/2 in Material Application Steel, Stainless Steel and Cast Iron Series ModulMill T-Max® Thickness 1/4 in UPC 11 69826247148 Width 1/2 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker WH Inscribed Circle 1/2 in Insert Size 1203 Insert Style SPKR Manufacturer's Grade 4240 Material Carbide Material Grade P, M, K Rake Positive Shape Square 0.1 to 0.31 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SMKR 42E2 R-WH 4240 |
| ANSI Code | SMKR 42E2 R-WH 4240 |
| Catalog Number | 5751399 |
| Country of Origin | JP |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1600 lb |
| Hand of Insert | Right |
| ISO Code | SPKR 12 03 ED R-WH 4240 |
| Item Group | 150 |
| Lead Angle | 45 ° |
| Length | 1/2 in |
| Material Application | Steel, Stainless Steel and Cast Iron |
| Series | ModulMill T-Max® |
| Thickness | 1/4 in |
| UPC 11 | 69826247148 |
| Width | 1/2 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | WH |
| Inscribed Circle | 1/2 in |
| Insert Size | 1203 |
| Insert Style | SPKR |
| Manufacturer's Grade | 4240 |
| Material | Carbide |
| Material Grade | P, M, K |
| Rake | Positive |
| Shape | Square |
| 0.1 to 0.31 mm/r cutting feed |
| 20 life cycle state |
