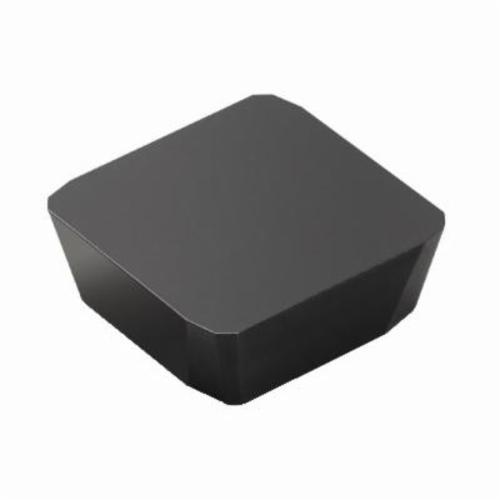

Sandvik Coromant 5751202 ModulMill Milling Insert, SMK 42E2 L 3020, S-Square, SPKN Insert, Carbide, 3020, SPKN 12 03 ED L 3020
SMK [SPKN] Milling Inserts
1238769
MFG #: 5751202
Sandvik Coromant
15.54000
/ ea
- ANSI Code: SMK 42E2 L 3020
- Catalog Number: 5751202
- Corner Radius: 0.0334 in
- Country of Origin: BR
- Finish: CVD-TiCN+Al2O3 Coated
- Gross Weight Per Pack: 0.1800 lb
- Hand of Insert: Left
- ISO Code: SPKN 12 03 ED L 3020
- Lead Angle: 45 °
- Length: 1/2 in
- Material Application: Hardened Steel and Cast Iron
- Series: ModulMill T-Max®
- Thickness: 1/8 in
- UPC 11: 69826279376
- Width: 1/2 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: ED
- Inscribed Circle: 1/2 in
- Insert Size: 1203
- Insert Style: SPKN
- Manufacturer's Grade: 3020
- Material: Carbide
- Material Grade: H, K
- Rake: Positive
- Shape: Square
Sandvik Coromant Milling Insert, Series: ModulMill, SPKN Insert, S-Square, 1/2 in Inscribed Circle, 1/8 in Thickness, 0.5275 in Length, 0.0334 in Corner Radius, 0 deg Rake, Manufacturer's Grade: 3020, ANSI Code: SMK 42E2 L 3020, ISO Code: SPKN 12 03 ED L 3020, Left Hand, Carbide, MTCVD Coated, Material Grade: H/K
- Features
| Flat surface clamping interface |
| 90 deg included angle |
| 75 deg cutting edge angle |
| 20 life cycle state |
| 1.6 mm wiper edge |
| 1-side cutting |
