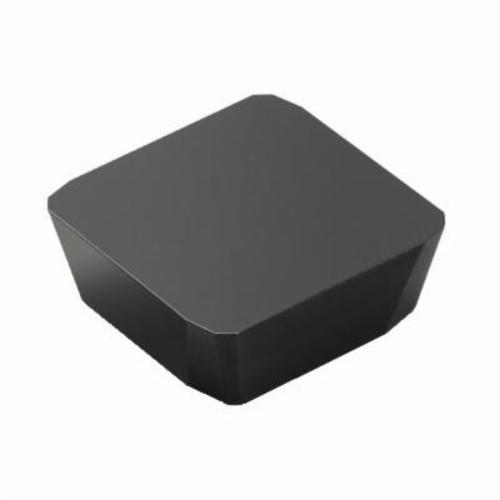

Sandvik Coromant 5751035 ModulMill Milling Insert, SMK 53E2 R 3040, S-Square, SPKN Insert, Carbide, 3040, SPKN 15 04 ED R 3040
SMK [SPKN] Milling Inserts
1238801
MFG #: 5751035
Sandvik Coromant
31.81000
/ ea
- Alternate Catalog Number: SMK 53E2 R 3040
- ANSI Code: SMK 53E2 R 3040
- Catalog Number: 5751035
- Corner Radius: 0.0334 in
- Country of Origin: JP
- Finish: CVD-TiCN+Al2O3 Coated
- Gross Weight Per Pack: 0.3600 lb
- Hand of Insert: Right
- ISO Code: SPKN 15 04 ED R 3040
- Item Group: 150
- Lead Angle: 45 °
- Length: 5/8 in
- Material Application: Hardened Steel, Cast Iron and Steel
- Series: ModulMill T-Max®
- Thickness: 0.1874 in
- UPC 11: 69826230413
- Width: 5/8 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: ED
- Inscribed Circle: 5/8 in
- Insert Size: 1203
- Insert Style: SPKN
- Manufacturer's Grade: 3040
- Material: Carbide
- Material Grade: H, K, P
- Rake: Positive
- Shape: Square
Sandvik Coromant Milling Insert, Series: ModulMill, SPKN Insert, S-Square, 5/8 in Inscribed Circle, 0.1874 in Thickness, 5/8 in Length, 0.0334 in Corner Radius, 0 deg Rake, Manufacturer's Grade: 3040, ANSI Code: SMK 53E2 R 3040, ISO Code: SPKN 15 04 ED R 3040, Right Hand, Carbide, MTCVD Coated, Material Grade: H/K/P
- Features
| Flat surface clamping interface |
| 90 deg included angle |
| 75 deg cutting edge angle |
| 20 life cycle state |
| 1.4 mm wiper edge |
| 1-side cutting |
| 0.1 to 0.21 mm/r cutting feed |
