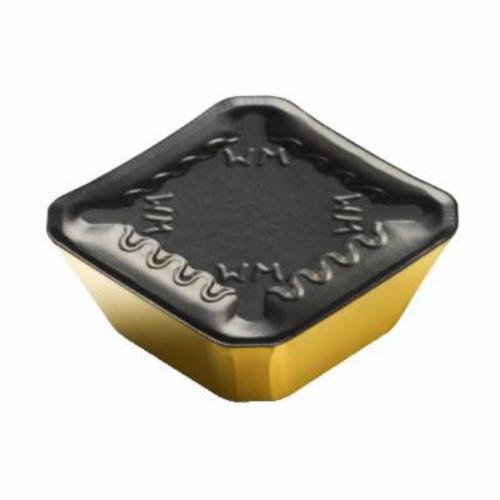

Sandvik Coromant 6571215 ModulMill Milling Insert, SEKR 15 04 AZ-WM 4230 ANSI, S-Square, SEKR-WM Insert, Carbide, 4230
SEKR Milling Inserts
1238572
MFG #: 6571215
Sandvik Coromant
37.00000
/ ea
- Alternate Catalog Number: SEKR 15 04 AZ-WM 4230
- ANSI Code: SEKR 15 04 AZ-WM 4230
- Catalog Number: 6571215
- Corner Radius: 0.059 in
- Country of Origin: BR
- Finish: CVD-TiCN+Al2O3+TiN Coated
- Gross Weight Per Pack: 0.3200 lb
- Hand of Insert: Neutral
- ISO Code: SEKR 15 04 AZ-WM 4230
- Item Group: 150
- Lead Angle: 45 °
- Length: 5/8 in
- Material Application: Steel and Cast Iron
- Series: ModulMill T-Max®
- Thickness: 0.1874 in
- Width: 5/8 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: WM
- Inscribed Circle: 5/8 in
- Insert Size: 1504
- Insert Style: SEKR-WM
- Manufacturer's Grade: 4230
- Material: Carbide
- Material Grade: P, K
- Rake: Negative
- Shape: Square
Sandvik Coromant Milling Insert, Series: ModulMill, SEKR-WM Insert, S-Square, 5/8 in Inscribed Circle, 0.1874 in Thickness, 5/8 in Length, WM Chipbreaker, 0.059 in Corner Radius, 20 deg Rake, Manufacturer's Grade: 4230, ANSI Code: SEKR 15 04 AZ-WM 4230, ISO Code: SEKR 15 04 AZ-WM 4230, Neutral Hand, Carbide, MTCVD Coated
- Features
| Flat surface clamping interface |
| 90 deg included angle |
| 45 deg cutting edge angle |
| 20 life cycle state |
| 1.6 mm wiper edge |
| 1-side cutting |
