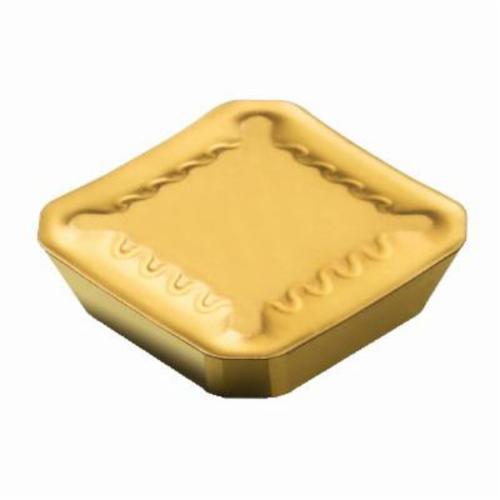

Sandvik Coromant 5749612 ModulMill Milling Insert, SEER 12 03 AZ-WL 4030, S-Square, SEER-WL Insert, Carbide, 4030, SEER 12 03 AZ-WL 4030
SEER Milling Inserts
1250085
MFG #: 5749612
Sandvik Coromant
26.88000
/ ea
- Alternate Catalog Number: SEER 12 03 AZ-WL 4030
- ANSI Code: SEER 12 03 AZ-WL 4030
- Catalog Number: 5749612
- Corner Radius: 0.059 in
- Country of Origin: SE
- Finish: MTCVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: Carbide
- ISO Code: SEER 12 03 AZ-WL 4030
- Item Group: 150
- Lead Angle: Neutral
- Length: 0.5275 in
- Relief Angle: S - Square
- Series: ModulMill
- Thickness: 1/8 in
- Type: ModulMill
- UPC 11: 69826209484
- Width: 3.17 mm
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: WL
- Inscribed Circle: 1/2 in
- Insert Size: 12.7 mm
- Insert Style: SEER-WL
- Manufacturer's Grade: 4030
- Material: Carbide
- Material Grade: K/P
- Rake: K, P
- Shape: S-Square
Sandvik Coromant Milling Insert, Series: ModulMill, SEER-WL Insert, S-Square, 1/2 in Inscribed Circle, 1/8 in Thickness, 0.5275 in Length, WL Chipbreaker, 0.059 in Corner Radius, Manufacturer's Grade: 4030, ANSI Code: SEER 12 03 AZ-WL 4030, ISO Code: SEER 12 03 AZ-WL 4030, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
- Features
| Flat surface clamping interface |
| 90 deg included angle |
| 45 deg cutting edge angle |
| 20 life cycle state |
| 1.6 mm wiper edge |
| 1-side cutting |
| 0.08 to 0.21 mm/r cutting feed |
