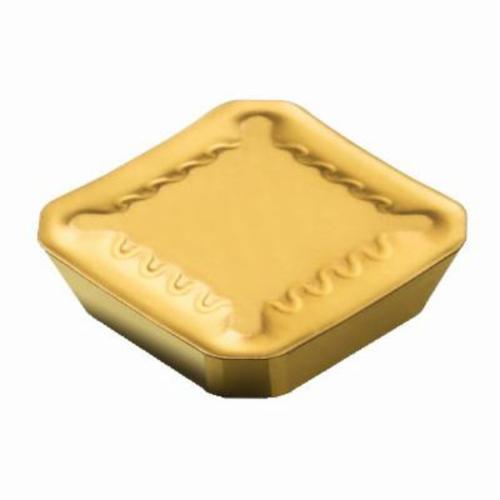

Sandvik Coromant 5749543 ModulMill Milling Insert, SEER 12 03 AZ-WL 4040, S-Square, SEER-WL Insert, Carbide, 4040, SEER 12 03 AZ-WL 4040
Custom_Product_Images_Illustration
Sandvik Coromant 5749543 ModulMill Milling Insert, SEER 12 03 AZ-WL 4040, S-Square, SEER-WL Insert, Carbide, 4040, SEER 12 03 AZ-WL 4040
SKU1250088
MFGR #5749543
Your Cost: $20.49/ea
List: Sandvik Coromant Milling Insert, Series: ModulMill, SEER-WL Insert, S-Square, 1/2 in Inscribed Circle, 1/8 in Thickness, 0.5275 in Length, WL Chipbreaker, 0.059 in Corner Radius, Manufacturer's Grade: 4040, ANSI Code: SEER 12 03 AZ-WL 4040, ISO Code: SEER 12 03 AZ-WL 4040, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/M/P
Sandvik Coromant Milling Insert, Series: ModulMill, SEER-WL Insert, S-Square, 1/2 in Inscribed Circle, 1/8 in Thickness, 0.5275 in Length, WL Chipbreaker, 0.059 in Corner Radius, Manufacturer's Grade: 4040, ANSI Code: SEER 12 03 AZ-WL 4040, ISO Code: SEER 12 03 AZ-WL 4040, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/M/P
ANSI Code SEER 12 03 AZ-WL 4040 Catalog Number 5749543 Corner Radius 0.059 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter MTCVD Coated Included Angle S - Square ISO Code SEER 12 03 AZ-WL 4040 Lead Angle 3.17 mm Length 0.5275 in Series ModulMill Thickness 1/8 in Type ModulMill UPC 11 69826204529 Width 1.5 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker WL Inscribed Circle 1/2 in Insert Size 12.7 mm Insert Style SEER-WL Manufacturer's Grade 4040 Material Carbide Material Grade K/M/P Rake Neutral Shape S-Square Flat surface clamping interface 90 deg included angle 45 deg cutting edge angle 20 life cycle state 1.6 mm wiper edge 1-side cutting 0.08 to 0.21 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | SEER 12 03 AZ-WL 4040 |
| Catalog Number | 5749543 |
| Corner Radius | 0.059 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | MTCVD Coated |
| Included Angle | S - Square |
| ISO Code | SEER 12 03 AZ-WL 4040 |
| Lead Angle | 3.17 mm |
| Length | 0.5275 in |
| Series | ModulMill |
| Thickness | 1/8 in |
| Type | ModulMill |
| UPC 11 | 69826204529 |
| Width | 1.5 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | WL |
| Inscribed Circle | 1/2 in |
| Insert Size | 12.7 mm |
| Insert Style | SEER-WL |
| Manufacturer's Grade | 4040 |
| Material | Carbide |
| Material Grade | K/M/P |
| Rake | Neutral |
| Shape | S-Square |
| Flat surface clamping interface |
| 90 deg included angle |
| 45 deg cutting edge angle |
| 20 life cycle state |
| 1.6 mm wiper edge |
| 1-side cutting |
| 0.08 to 0.21 mm/r cutting feed |
