Valenite Tiger-tec® Gold 7169048 Positive Single Sided Indexable Milling Insert, SDMT06T204-D57 WKP35G ANSI, Square

SDMT Milling Inserts
1164409 MFG #: SDMT06T204-D57WKP35G
Walter (Valentine)
12.68000 / ea

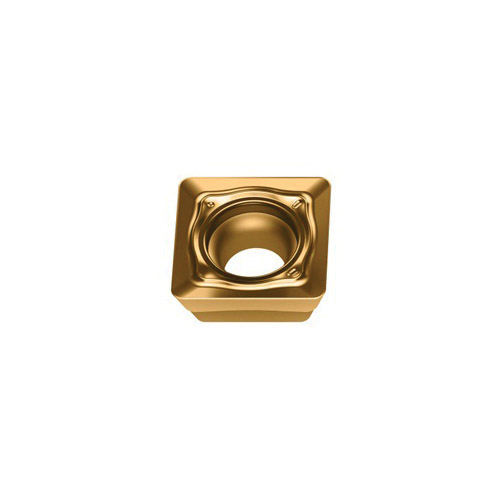

Walter_Valenite_7169048
  • ANSI Code: SDMT 06T204-D57 WKP35G
  • Catalog Number: SDMT06T204-D57WKP35G
  • Corner Radius: 0.4 mm
  • Country of Origin: DE
  • Finish: CVD-TiAlN+TiN Coated
  • Gross Weight Per Pack: 1 lb
  • Hand of Insert: Neutral
  • Hole Diameter: 2.5 mm
  • ISO Code: SDMT 06T204-D57 WKP35G
  • Lead Angle: 15 °
  • Length: 6.35 mm
  • Material Application: Cast Iron and Steel
  • Series: Tiger?tec® Gold
  • Sub Brand: Tiger-tec®
  • Thickness: 2.78 mm
  • Type: Single Sided
  • Width: 6.35 mm
  • Stock Status: NONSTOCK
  • Brand: Walter (Valentine)
  • Manufacturer: Walter
  • Chipbreaker: D57
  • Inscribed Circle: 6.35 mm
  • Insert Size: 06T204
  • Insert Style: SDMT
  • Manufacturer's Grade: WKP35G
  • Material: Carbide
  • Material Grade: K, P
  • Rake: Positive
  • Shape: Square
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
QTY
Add to Wishlist
  • Features
D57 Geometry - The stable one
For average machining conditions
Can be used universally
One wave on the flank face
Optimized wear characteristics for a significantly longer tool life
Optimum cutting data due to a reduction in visible wear rate
Maximum process reliability thanks to the tough cutting edge
Gold colored top layer provides optimum wear detection
Excellent combination of wear resistance and toughness for milling
For moderate to high cutting speeds, dry milling or use with coolant, roughing steel and cast iron workpieces
0.08 to 0.2 mm cutting edge tolerance
0.05 to 0.15 mm inscribed circle tolerance
+/-0.13 mm thickness tolerance
4 cutting edges
40 to 60 deg double countersink hole
