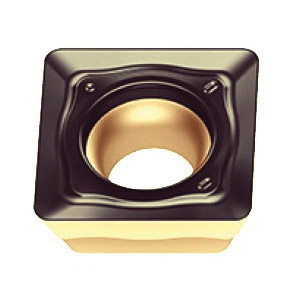

Valenite Tiger-tec® Gold 6556179 Positive Single Sided Indexable Milling Insert, SDMT09T308-F57 WAK15 ANSI, Square
SDMT Milling Inserts
1076116
MFG #: SDMT09T308-F57WAK15
Walter (Valentine)
14.63000
/ ea
- ANSI Code: Tiger?tec®
- Catalog Number: SDMT09T308-F57WAK15
- Corner Radius: 0.8 mm
- Country of Origin: DE
- Finish: CVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: 3.9 mm
- ISO Code: SDMT09T308-F57 WAK15
- Lead Angle: 15 deg
- Length: 9.52 mm
- Sub Brand: Tiger-tec®
- Thickness: 3.97 mm
- Type: Positive Single Sided
- Width: 9.52 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: F57
- Inscribed Circle: 9.52 mm
- Insert Style: SDMT
- Manufacturer's Grade: WAK15
- Material: Carbide
- Material Grade: K
- Rake: 16 deg
- Shape: Square
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
- Features
| F57 Geometry - The universal one |
| For good machining conditions |
| Low cutting force |
| Medium feed rates |
| Two waves on the flank face |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 4 cutting edges |
| 40 to 60 deg double countersink hole |
