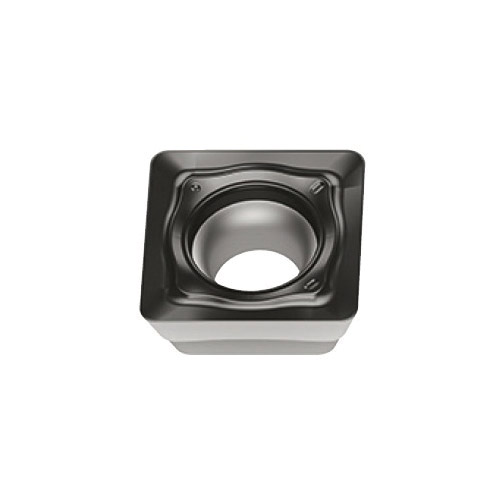

Valenite Tiger-tec® Silver 6556205 Positive Single Sided Indexable Milling Insert, SDGT09T3PDR-D57 WKP25S ANSI, Square
SDGT Milling Inserts
PDW~12067238
MFG #: SDGT09T3PDR-D57WKP25S
Walter (Valentine)
18.70000
/ ea
- ANSI Code: SDGT09T3PDR-D57 WKP25S
- Catalog Number: SDGT09T3PDR-D57WKP25S
- Corner Radius: 0.8 mm
- Country of Origin: DE
- Finish: CVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Right
- Hole Diameter: 3.9 mm
- ISO Code: Tiger?tec® Silver
- Lead Angle: 15 deg
- Length: 9.52 mm
- Sub Brand: Tiger-tec®
- Thickness: 3.97 mm
- Type: Positive Single Sided
- Width: 9.52 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: D57
- Inscribed Circle: 9.52 mm
- Insert Style: SDGT
- Manufacturer's Grade: WKP25S
- Material: Carbide
- Material Grade: K/P
- Rake: 10 deg
- Shape: Square
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| D57 Geometry - The stable one |
| For average machining conditions |
| Can be used universally |
| One wave on the flank face |
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.2 mm width face chamfer |
| 4 cutting edges |
| 40 to 60 deg double countersink hole |
| 90 deg approach |
