Valenite Tiger-tec® Gold 7182230 Positive Single Sided Indexable Milling Insert, SDGT09T3AZN-F57 WKP35G ANSI, Square

SDGT Milling Inserts
PDW~12584726 MFG #: SDGT09T3AZN-F57WKP35G
Walter (Valentine)
22.40000 / ea

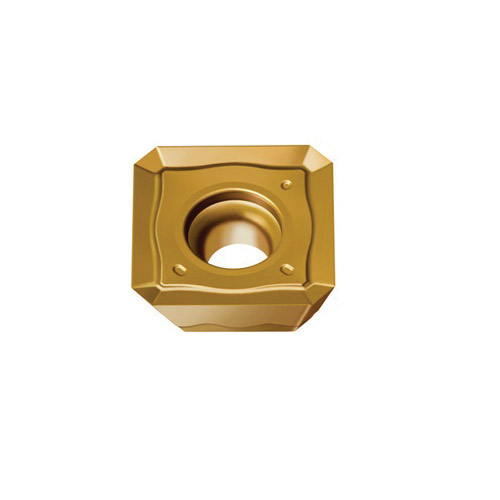

Walter_Valenite_7182230
  • ANSI Code: SDGT09T3AZN-F57 WKP35G
  • Catalog Number: SDGT09T3AZN-F57WKP35G
  • Corner Radius: 0.3 mm
  • Finish: CVD-TiAlN+TiN Coated
  • Gross Weight Per Pack: 1 lb
  • Hand of Insert: Neutral
  • Hole Diameter: 3.9 mm
  • ISO Code: SDGT09T3AZN-F57 WKP35G
  • Lead Angle: 15 °
  • Length: 9.52 mm
  • Material Application: Cast Iron and Steel
  • Series: Tiger?tec® Gold
  • Sub Brand: Tiger-tec®
  • Thickness: 3.97 mm
  • Type: Single Sided
  • Width: 9.52 mm
  • Stock Status: NONSTOCK
  • Brand: Walter (Valentine)
  • Manufacturer: Walter
  • Chipbreaker: F57
  • Inscribed Circle: 9.52 mm
  • Insert Size: 09T3
  • Insert Style: SDGT
  • Manufacturer's Grade: WKP35G
  • Material: Carbide
  • Material Grade: K, P
  • Rake: Positive
  • Shape: Square
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
QTY
Add to Wishlist
  • Features
F57 Geometry - The universal one
For good machining conditions
Low cutting force
Medium feed rates
Two waves on the flank face
Optimized wear characteristics for a significantly longer tool life
Optimum cutting data due to a reduction in visible wear rate
Maximum process reliability thanks to the tough cutting edge
Gold colored top layer provides optimum wear detection
Excellent combination of wear resistance and toughness for milling
For moderate to high cutting speeds, dry milling or use with coolant, roughing steel and cast iron workpieces
+/-0.025 mm cutting edge tolerance
+/-0.025 mm inscribed circle tolerance
+/-0.13 mm thickness tolerance
1.4 mm width face chamfer
4 cutting edges
40 to 60 deg double countersink hole
45 deg approach
