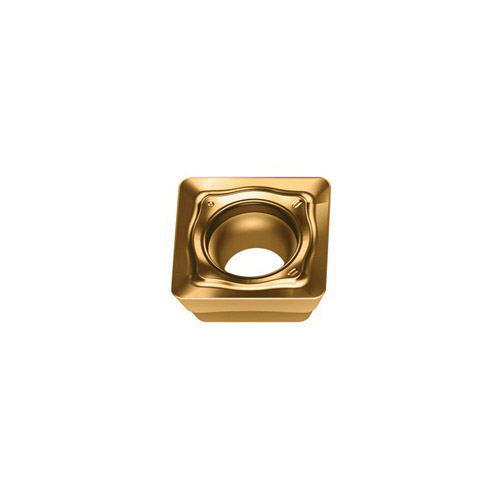

Valenite Tiger-tec® Gold 7169046 Positive Single Sided Indexable Milling Insert, SDGT06T2PDR-D57 WKP35G ANSI, Square
Custom_Product_Images_Illustration
Valenite Tiger-tec® Gold 7169046 Positive Single Sided Indexable Milling Insert, SDGT06T2PDR-D57 WKP35G ANSI, Square
SKUPDW~12584722
MFGR #SDGT06T2PDR-D57WKP35G
Your Cost: $29.84/ea
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
ANSI Code SDGT06T2PDR-D57 WKP35G Catalog Number SDGT06T2PDR-D57WKP35G Corner Radius 0.4 mm Country of Origin DE Finish CVD-TiAlN+TiN Coated Gross Weight Per Pack 1 lb Hand of Insert Right Hole Diameter 2.5 mm ISO Code SDGT06T2PDR-D57 WKP35G Lead Angle 15 ° Length 6.4 mm Material Application Cast Iron and Steel Series Tiger?tec® Gold Sub Brand Tiger-tec® Thickness 2.78 mm Type Single Sided Width 6.4 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker D57 Inscribed Circle 6.4 mm Insert Size 06T2 Insert Style SDGT Manufacturer's Grade WKP35G Material Carbide Material Grade K, P Rake Positive Shape Square D57 Geometry - The stable one For average machining conditions Can be used universally One wave on the flank face Optimized wear characteristics for a significantly longer tool life Optimum cutting data due to a reduction in visible wear rate Maximum process reliability thanks to the tough cutting edge Gold colored top layer provides optimum wear detection Excellent combination of wear resistance and toughness for milling For moderate to high cutting speeds, dry milling or use with coolant, roughing steel and cast iron workpieces +/-0.025 mm cutting edge tolerance +/-0.025 mm inscribed circle tolerance +/-0.13 mm thickness tolerance 1.2 mm width face chamfer 4 cutting edges 40 to 60 deg double countersink hole 90 deg approach
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | SDGT06T2PDR-D57 WKP35G |
| Catalog Number | SDGT06T2PDR-D57WKP35G |
| Corner Radius | 0.4 mm |
| Country of Origin | DE |
| Finish | CVD-TiAlN+TiN Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Right |
| Hole Diameter | 2.5 mm |
| ISO Code | SDGT06T2PDR-D57 WKP35G |
| Lead Angle | 15 ° |
| Length | 6.4 mm |
| Material Application | Cast Iron and Steel |
| Series | Tiger?tec® Gold |
| Sub Brand | Tiger-tec® |
| Thickness | 2.78 mm |
| Type | Single Sided |
| Width | 6.4 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | D57 |
| Inscribed Circle | 6.4 mm |
| Insert Size | 06T2 |
| Insert Style | SDGT |
| Manufacturer's Grade | WKP35G |
| Material | Carbide |
| Material Grade | K, P |
| Rake | Positive |
| Shape | Square |
| D57 Geometry - The stable one |
| For average machining conditions |
| Can be used universally |
| One wave on the flank face |
| Optimized wear characteristics for a significantly longer tool life |
| Optimum cutting data due to a reduction in visible wear rate |
| Maximum process reliability thanks to the tough cutting edge |
| Gold colored top layer provides optimum wear detection |
| Excellent combination of wear resistance and toughness for milling |
| For moderate to high cutting speeds, dry milling or use with coolant, roughing steel and cast iron workpieces |
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.2 mm width face chamfer |
| 4 cutting edges |
| 40 to 60 deg double countersink hole |
| 90 deg approach |
