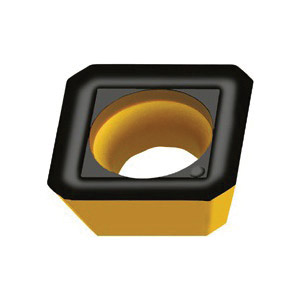

Valenite Tiger-tec® Gold 7021684 Positive Single Sided Indexable Milling Insert, SDGT1204AZN-F57 WAK15 ANSI, Square
Custom_Product_Images_Illustration
Valenite Tiger-tec® Gold 7021684 Positive Single Sided Indexable Milling Insert, SDGT1204AZN-F57 WAK15 ANSI, Square
SKUPDW~12584734
MFGR #SDGT1204AZN-F57WAK15
Your Cost: $38.98/ea
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
ANSI Code SDGT1204AZN-F57 WAK15 Catalog Number SDGT1204AZN-F57WAK15 Corner Radius 0.3 mm Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 4.4 mm ISO Code SDGT1204AZN-F57 WAK15 Lead Angle 15 ° Length 12.7 mm Material Application Cast Iron Series Tiger?tec® Sub Brand Tiger-tec® Thickness 4.76 mm Type Single Sided Width 12.7 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker F57 Inscribed Circle 12.7 mm Insert Size 1204 Insert Style SDGT Manufacturer's Grade WAK15 Material Carbide Material Grade K Rake Positive Shape Square F57 Geometry - The universal one For good machining conditions Low cutting force Medium feed rates Two waves on the flank face +/-0.025 mm cutting edge tolerance +/-0.025 mm inscribed circle tolerance +/-0.13 mm thickness tolerance 1.8 mm width face chamfer 4 cutting edges 40 to 60 deg double countersink hole 45 deg approach
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | SDGT1204AZN-F57 WAK15 |
| Catalog Number | SDGT1204AZN-F57WAK15 |
| Corner Radius | 0.3 mm |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 4.4 mm |
| ISO Code | SDGT1204AZN-F57 WAK15 |
| Lead Angle | 15 ° |
| Length | 12.7 mm |
| Material Application | Cast Iron |
| Series | Tiger?tec® |
| Sub Brand | Tiger-tec® |
| Thickness | 4.76 mm |
| Type | Single Sided |
| Width | 12.7 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | F57 |
| Inscribed Circle | 12.7 mm |
| Insert Size | 1204 |
| Insert Style | SDGT |
| Manufacturer's Grade | WAK15 |
| Material | Carbide |
| Material Grade | K |
| Rake | Positive |
| Shape | Square |
| F57 Geometry - The universal one |
| For good machining conditions |
| Low cutting force |
| Medium feed rates |
| Two waves on the flank face |
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.8 mm width face chamfer |
| 4 cutting edges |
| 40 to 60 deg double countersink hole |
| 45 deg approach |
