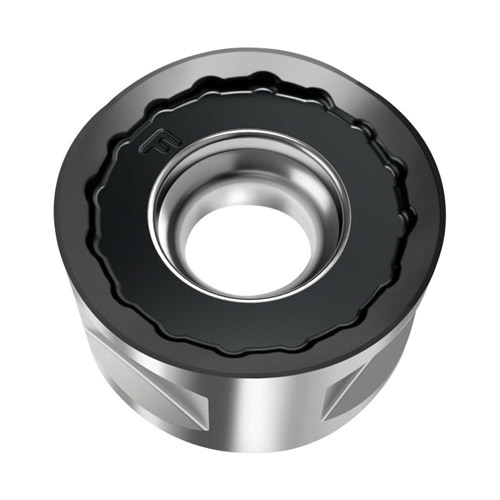

Valenite Tiger-tec® Silver 7037547 Negative Indexable Milling Insert, RNMX1206M0-F67 WSP45S ANSI, Round, RNMX Insert
RNMX Milling Inserts
PDW~12584679
MFG #: RNMX1206M0-K67WSP45S
Walter (Valentine)
23.50000
/ ea
- ANSI Code: RNMX1206M0-F67 WSP45S
- Catalog Number: RNMX1206M0-K67WSP45S
- Corner Radius: 6 mm
- Country of Origin: DE
- Finish: PVD-TiAlN+Al2O3 (Al) Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: 4.4 mm
- ISO Code: RNMX1206M0-F67 WSP45S
- Lead Angle: 0 °
- Material Application: Stainless Steel, Steel, Super Alloys and Titanium
- Series: Tiger?tec® Silver
- Sub Brand: Tiger-tec®
- Thickness: 6.48 mm
- Width: 12 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: F67
- Inscribed Circle: 12 mm
- Insert Size: 1206M0
- Insert Style: RNMX
- Manufacturer's Grade: WSP45S
- Material: Carbide
- Material Grade: M, P, S
- Rake: Negative
- Shape: Round
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| For good machining conditions |
| Low cutting force |
| Medium feed rates |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 4 cutting edges |
