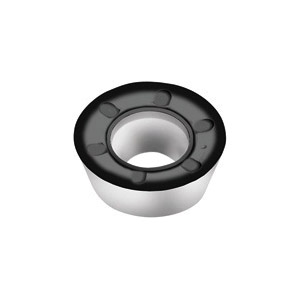

Valenite Tiger-tec® Silver 6427960 Positive Single Sided Indexable Milling Insert, RDMT2006M0-D57 WSP45S ANSI, Round
RDMT Milling Inserts
PDW~12067091
MFG #: RDMT2006M0-D57WSP45S
Walter (Valentine)
25.60000
/ ea
- ANSI Code: RDMT2006M0-D57 WSP45S
- Catalog Number: RDMT2006M0-D57WSP45S
- Corner Radius: 10 mm
- Country of Origin: DE
- Finish: Tiger?tec® Silver
- Gross Weight Per Pack: 0.0400 lb
- Hand of Insert: Neutral
- Hole Diameter: 6.5 mm
- ISO Code: RDMT2006M0-D57 WSP45S
- Lead Angle: 15 deg
- Sub Brand: Tiger-tec®
- Thickness: 6.35 mm
- Type: Positive Single Sided
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: D57
- Inscribed Circle: 20 mm
- Insert Style: RDMT
- Manufacturer's Grade: WSP45S
- Material: Carbide
- Material Grade: M/P/S
- Rake: 10 deg
- Shape: Round
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| D57 Geometry - The stable one |
| For average machining conditions |
| Can be used universally |
| One wave on the flank face |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 6 cutting edges |
| 40 to 60 deg double countersink hole |
