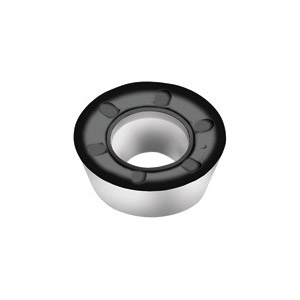

Valenite Tiger-tec® Silver 6161471 Positive Single Sided Indexable Milling Insert, RDMT1605M0-D57 WSM35S ANSI, Round
RDMT Milling Inserts
PDW~10507019
MFG #: RDMT1605M0-D57WSM35S
Walter (Valentine)
20.30000
/ ea
- ANSI Code: RDMT1605M0-D57 WSM35S
- Catalog Number: RDMT1605M0-D57WSM35S
- Corner Radius: 8 mm
- Country of Origin: DE
- Finish: PVD-TiAlN+Al2O3 (Al) Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: 5.5 mm
- ISO Code: RDMT1605M0-D57 WSM35S
- Lead Angle: 15 °
- Material Application: Stainless Steel, Heat Resistant Special Alloys Based on Iron, Nickel and Cobalt, Titanium and Titanium Alloys
- Series: Tiger?tec® Silver
- Sub Brand: Tiger-tec®
- Thickness: 5.56 mm
- Type: Single Sided
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: D57
- Inscribed Circle: 16 mm
- Insert Size: 1605M0
- Insert Style: RDMT
- Manufacturer's Grade: WSM35S
- Material: Carbide
- Material Grade: M, S
- Rake: Positive
- Shape: Round
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliabilityExtremely smooth rake face for optimum tribochemical wear resistanceSilver flank face indicator layer for extremely easy wear detection |
| For average machining conditions |
| Can be used universally |
| One wave on the flank face |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 6 cutting edges |
| 40 to 60 deg double countersink hole |
