Sandvik Coromant

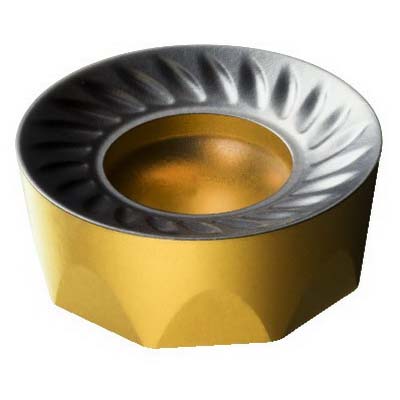

Sandvik Coromant 5740486 CoroMill® 200 Milling Insert, RCKT 19 06 00-PM 4240 ANSI, R-Round, RCKT-PM (INCH) Insert, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5740486 CoroMill® 200 Milling Insert, RCKT 19 06 00-PM 4240 ANSI, R-Round, RCKT-PM (INCH) Insert, Carbide
SKU293928
MFGR #5740486
Your Cost: $26.93/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 200, RCKT-PM (INCH) Insert, R-Round, 3/4 in Inscribed Circle, 1/4 in Thickness, PM Chipbreaker, 3/8 in Corner Radius, Positive Rake, 7 deg Lead Angle, 0.2559 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: RCKT 19 06 00-PM 4240, ISO Code: RCKT 19 06 00-PM 4240, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/M/P
Sandvik Coromant Milling Insert, Series: CoroMill® 200, RCKT-PM (INCH) Insert, R-Round, 3/4 in Inscribed Circle, 1/4 in Thickness, PM Chipbreaker, 3/8 in Corner Radius, Positive Rake, 7 deg Lead Angle, 0.2559 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: RCKT 19 06 00-PM 4240, ISO Code: RCKT 19 06 00-PM 4240, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/M/P
ANSI Code RCKT 19 06 00-PM 4240 Catalog Number 5740486 Corner Radius 3/8 in Country of Origin US Finish MTCVD Coated Gross Weight Per Pack 0.0400 lb Hand of Insert Neutral Hole Diameter 0.2559 in Includes R - Round ISO Code RCKT 19 06 00-PM 4240 Lead Angle 7 deg Length 4240 Material Application Steel Series CoroMill® 200 Thickness 1/4 in Type RCKT 19 06 00-PM 4240 UPC 11 69826233343 UPC 12 69826233343 Width 6.35 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 3/4 in Insert Size K, M, P Insert Style RCKT-PM (INCH) Manufacturer's Grade 4240 Material Carbide Material Grade K/M/P Rake Positive Shape R-Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 7 deg clearance 2.79 mm D cutting 1-side cutting 20 life cycle state 8 corner E cutting edge condition 8 cutting edge Screw clamp mounting 0.1 to 0.28 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | RCKT 19 06 00-PM 4240 |
| Catalog Number | 5740486 |
| Corner Radius | 3/8 in |
| Country of Origin | US |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0400 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2559 in |
| Includes | R - Round |
| ISO Code | RCKT 19 06 00-PM 4240 |
| Lead Angle | 7 deg |
| Length | 4240 |
| Material Application | Steel |
| Series | CoroMill® 200 |
| Thickness | 1/4 in |
| Type | RCKT 19 06 00-PM 4240 |
| UPC 11 | 69826233343 |
| UPC 12 | 69826233343 |
| Width | 6.35 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 3/4 in |
| Insert Size | K, M, P |
| Insert Style | RCKT-PM (INCH) |
| Manufacturer's Grade | 4240 |
| Material | Carbide |
| Material Grade | K/M/P |
| Rake | Positive |
| Shape | R-Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 2.79 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 8 corner |
| E cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
| 0.1 to 0.28 mm/r cutting feed |
