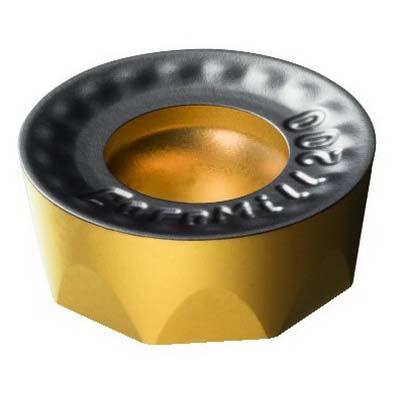

Sandvik Coromant 5739489 CoroMill® 200 Milling Insert, RCKT 09 T3 00-PH 4220, R-Round, RCKT-PH (INCH) Insert, Carbide, 4220, RCKT 09 T3 00-PH 4220
RCKT Milling Inserts
1255165
MFG #: 5739489
Sandvik Coromant
13.52000
/ ea
- Alternate Catalog Number: RCKT 09 T3 00-PH 4220
- ANSI Code: RCKT 09 T3 00-PH 4220
- Catalog Number: 5739489
- Corner Radius: 0.1874 in
- Country of Origin: SE
- Finish: MTCVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.1574 in
- Includes: 3.96875 mm
- ISO Code: RCKT 09 T3 00-PH 4220
- Item Group: 350
- Lead Angle: 7 deg
- Length: 7 deg
- Material Application: Hardened Steel, Cast Iron and Steel
- Series: CoroMill® 200
- Thickness: 0.1562 in
- Type: Positive
- UPC 11: 69826239944
- Width: RCKT 09 T3 00-PH 4220
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: PH
- Inscribed Circle: 3/8 in
- Insert Size: 9.525 mm
- Insert Style: RCKT-PH (INCH)
- Manufacturer's Grade: 4220
- Material: Carbide
- Material Grade: P
- Rake: Positive
- Shape: R-Round
Sandvik Coromant Milling Insert, Series: CoroMill® 200, RCKT-PH (INCH) Insert, R-Round, 3/8 in Inscribed Circle, 0.1562 in Thickness, PH Chipbreaker, 0.1874 in Corner Radius, Positive Rake, 7 deg Lead Angle, 0.1574 in Hole Dia, Manufacturer's Grade: 4220, ANSI Code: RCKT 09 T3 00-PH 4220, ISO Code: RCKT 09 T3 00-PH 4220, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 4.7625 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
| 0.1 to 0.42 mm/r cutting feed |
