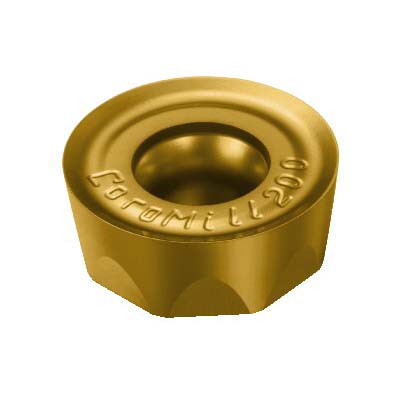

Sandvik Coromant 5739478 CoroMill® 200 Milling Insert, RCHT 20 06 M0-PL 1025 ANSI, R-Round, RCHT-PL Insert, Carbide, 1025
RCHT Milling Inserts
1255219
MFG #: 5739478
Sandvik Coromant
45.14000
/ ea
- Alternate Catalog Number: RCHT 20 06 M0-PL 1025
- ANSI Code: RCHT 20 06 M0-PL 1025
- Catalog Number: 5739478
- Chipbreaker: PL
- Corner Radius: 0.3937 in
- Country of Origin: SE
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0400 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.2559 in
- ISO Code: RCHT 20 06 M0-PL 1025
- Item Group: 350
- Lead Angle: 7 deg
- Length: 6.5 mm
- Manufacturer's Grade: 1025
- Material Application: Hardened Steel, Stainless Steel, Non-Ferrous Metals, Plastics, Wood, Steel and Titanium Alloy
- Series: CoroMill® 200
- Thickness: 1/4 in
- Type: PL
- UPC 11: 69826204661
- Width: 6.35 mm
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Inscribed Circle: 0.7874 in
- Insert Size: RCHT-PL
- Insert Style: RCHT-PL
- Material: Carbide
- Material Grade: H/M/N/P/S
- Maximum Depth of Cut: R - Round
- Rake: Positive
- Shape: R-Round
Sandvik Coromant Milling Insert, Series: CoroMill® 200, RCHT-PL Insert, R-Round, 0.7874 in Inscribed Circle, 1/4 in Thickness, PL Chipbreaker, 0.3937 in Corner Radius, Positive Rake, 7 deg Lead Angle, 0.2559 in Hole Dia, Manufacturer's Grade: 1025, ANSI Code: RCHT 20 06 M0-PL 1025, ISO Code: RCHT 20 06 M0-PL 1025, Neutral Hand, Carbide, PVD Coated, Material Grade: H/M/N/P/S
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 2.93 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 8 corner |
| F cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
| 0.08 to 0.21 mm/r cutting feed |
