Sandvik Coromant

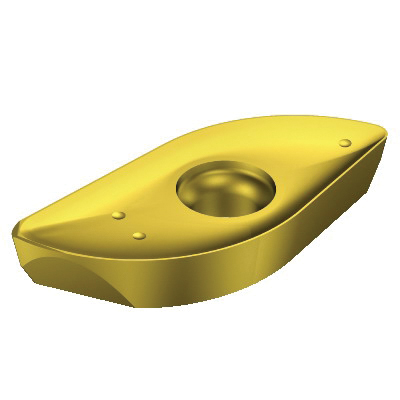

Sandvik Coromant 5739055 CoroMill® 216 Ball Nose Insert, RA216-16 03 M-M 1025, R-Round, RA216..M-M Insert, Carbide, 1025, RA216-16 03 M-M 1025
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5739055 CoroMill® 216 Ball Nose Insert, RA216-16 03 M-M 1025, R-Round, RA216..M-M Insert, Carbide, 1025, RA216-16 03 M-M 1025
SKU1235651
MFGR #5739055
Your Cost: $41.96/ea
List: Sandvik Coromant Ball Nose Insert, Series: CoroMill® 216, RA216..M-M Insert, R-Round, 1/8 in Thickness, 0.559 in Length, MM Chipbreaker, 0.1141 in Hole Dia, Manufacturer's Grade: 1025, ANSI Code: RA216-16 03 M-M 1025, ISO Code: RA216-16 03 M-M 1025, Right Hand, Carbide, PVD Coated, Material Grade: M/P/S
Sandvik Coromant Ball Nose Insert, Series: CoroMill® 216, RA216..M-M Insert, R-Round, 1/8 in Thickness, 0.559 in Length, MM Chipbreaker, 0.1141 in Hole Dia, Manufacturer's Grade: 1025, ANSI Code: RA216-16 03 M-M 1025, ISO Code: RA216-16 03 M-M 1025, Right Hand, Carbide, PVD Coated, Material Grade: M/P/S
Alternate Catalog Number RA216-16 03 M-M 1025 ANSI Code RA216-16 03 M-M 1025 Catalog Number 5739055 Corner Radius 0.312 in Country of Origin FR Finish PVD-TiCN+TiN Coated Gross Weight Per Pack 9.0600 lb Hand of Insert Right Hole Diameter 0.1141 in ISO Code RA216-16 03 M-M 1025 Item Group 350 Lead Angle 9 ° Material Application Steel, Stainless Steel and Titanium Alloys Series CoroMill® 216 Thickness 1/8 in Type Single Sided UPC 11 69826203202 Width 3/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker M-M Inscribed Circle 3/4 in Insert Size 1603 Insert Style RA216 Manufacturer's Grade 1025 Material Carbide Material Grade M, P, S Rake Positive Shape Round Maximum security and reliability|High metal removal rate|Easy to apply|For rough and semi-finish profiling 9 deg clearance E cutting edge condition 7.9375 mm major cutting edge radius 2 corner 1-side cutting 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | RA216-16 03 M-M 1025 |
| ANSI Code | RA216-16 03 M-M 1025 |
| Catalog Number | 5739055 |
| Corner Radius | 0.312 in |
| Country of Origin | FR |
| Finish | PVD-TiCN+TiN Coated |
| Gross Weight Per Pack | 9.0600 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1141 in |
| ISO Code | RA216-16 03 M-M 1025 |
| Item Group | 350 |
| Lead Angle | 9 ° |
| Material Application | Steel, Stainless Steel and Titanium Alloys |
| Series | CoroMill® 216 |
| Thickness | 1/8 in |
| Type | Single Sided |
| UPC 11 | 69826203202 |
| Width | 3/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | M-M |
| Inscribed Circle | 3/4 in |
| Insert Size | 1603 |
| Insert Style | RA216 |
| Manufacturer's Grade | 1025 |
| Material | Carbide |
| Material Grade | M, P, S |
| Rake | Positive |
| Shape | Round |
| Maximum security and reliability|High metal removal rate|Easy to apply|For rough and semi-finish profiling |
| 9 deg clearance |
| E cutting edge condition |
| 7.9375 mm major cutting edge radius |
| 2 corner |
| 1-side cutting |
| 20 life cycle state |
