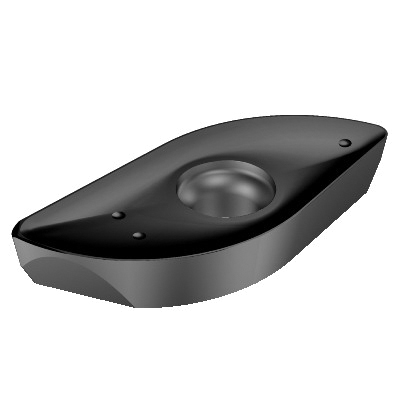

Sandvik Coromant 5739050 CoroMill® 216 Ball Nose Insert, RA216-16 03 M-M 1010 ANSI, R-Round, RA216..M-M Insert, Carbide, 1010
RA216 Milling Inserts
1235646
MFG #: 5739050
Sandvik Coromant
37.43000
/ ea
- Alternate Catalog Number: RA216-16 03 M-M 1010
- ANSI Code: RA216-16 03 M-M 1010
- Catalog Number: 5739050
- Country of Origin: FR
- Finish: PVD-TiAlN2 Coated
- Gross Weight Per Pack: 9.0600 lb
- Hand of Insert: Right
- Hole Diameter: 0.1141 in
- ISO Code: RA216-16 03 M-M 1010
- Item Group: 350
- Lead Angle: 9 °
- Material Application: Cast Iron and Hardened Steel
- Series: CoroMill® 216
- Thickness: 1/8 in
- Type: Single Sided
- UPC 11: 69826243824
- Width: 3/4 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: M-M
- Inscribed Circle: 3/4 in
- Insert Size: 1603
- Insert Style: RA216
- Manufacturer's Grade: 1010
- Material: Carbide
- Material Grade: H
- Rake: Positive
- Shape: Round
Sandvik Coromant Ball Nose Insert, Series: CoroMill® 216, RA216..M-M Insert, R-Round, 1/8 in Thickness, 0.559 in Length, MM Chipbreaker, 0.1141 in Hole Dia, Manufacturer's Grade: 1010, ANSI Code: RA216-16 03 M-M 1010, ISO Code: RA216-16 03 M-M 1010, Right Hand, Carbide, PVD Coated, Material Grade: H
- Features
| Maximum security and reliability|High metal removal rate|Easy to apply|For rough and semi-finish profiling |
| 9 deg clearance |
| E cutting edge condition |
| 7.9375 mm major cutting edge radius |
| 2 corner |
| 1-side cutting |
| 20 life cycle state |
