Sandvik Coromant

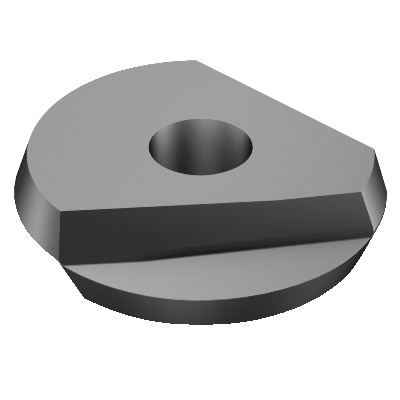

Sandvik Coromant 5738697 CoroMill® 216F Ball Nose Insert, RA216F-25 60 E-L P20A, R-Round, RA216F..E-L Insert, Carbide, P20A, RA216F-25 60 E-L P20A
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5738697 CoroMill® 216F Ball Nose Insert, RA216F-25 60 E-L P20A, R-Round, RA216F..E-L Insert, Carbide, P20A, RA216F-25 60 E-L P20A
SKU417361
MFGR #5738697
Your Cost: $133.39/ea
List: Sandvik Coromant Ball Nose Insert, Series: CoroMill® 216F, RA216F..E-L Insert, R-Round, 1 in Inscribed Circle, 0.2362 in Thickness, L Chipbreaker, 1/2 in Corner Radius, 0.2362 in Hole Dia, Manufacturer's Grade: P20A, ANSI Code: RA216F-25 60 E-L P20A, ISO Code: RA216F-25 60 E-L P20A, Right Hand, Carbide, PVD Coated, Material Grade: H/K/M/P
Sandvik Coromant Ball Nose Insert, Series: CoroMill® 216F, RA216F..E-L Insert, R-Round, 1 in Inscribed Circle, 0.2362 in Thickness, L Chipbreaker, 1/2 in Corner Radius, 0.2362 in Hole Dia, Manufacturer's Grade: P20A, ANSI Code: RA216F-25 60 E-L P20A, ISO Code: RA216F-25 60 E-L P20A, Right Hand, Carbide, PVD Coated, Material Grade: H/K/M/P
Alternate Catalog Number RA216F-25 60 E-L P20A ANSI Code RA216F-25 60 E-L P20A Catalog Number 5738697 Corner Radius 1/2 in Country of Origin FR Finish PVD-TiAlN2 Coated Gross Weight Per Pack 0.5900 lb Hand of Insert Right Hole Diameter 0.2362 in ISO Code RA216F-25 60 E-L P20A Item Group 350 Lead Angle 9 ° Material Application Hardened Steel, Cast Iron, Stainless Steel and Steel Series CoroMill® 216F Thickness 0.236 in Type Single Sided UPC 11 69826225618 UPC 12 69826225618 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker L Inscribed Circle 1 in Insert Size 2560 Insert Style RA216F Manufacturer's Grade P20A Material Carbide Material Grade H, K, M, P Rake Neutral Shape Round High precision|Excellent surface finish|Cost effective compared to solid carbide solutions|Easy to apply|Stiff carbide shank for high precision demands|Insert geometries and grades for all materials F cutting edge condition 1 corner 25.4 mm Dia cutting 1-side cutting 2 effective cutting edge 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | RA216F-25 60 E-L P20A |
| ANSI Code | RA216F-25 60 E-L P20A |
| Catalog Number | 5738697 |
| Corner Radius | 1/2 in |
| Country of Origin | FR |
| Finish | PVD-TiAlN2 Coated |
| Gross Weight Per Pack | 0.5900 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.2362 in |
| ISO Code | RA216F-25 60 E-L P20A |
| Item Group | 350 |
| Lead Angle | 9 ° |
| Material Application | Hardened Steel, Cast Iron, Stainless Steel and Steel |
| Series | CoroMill® 216F |
| Thickness | 0.236 in |
| Type | Single Sided |
| UPC 11 | 69826225618 |
| UPC 12 | 69826225618 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | L |
| Inscribed Circle | 1 in |
| Insert Size | 2560 |
| Insert Style | RA216F |
| Manufacturer's Grade | P20A |
| Material | Carbide |
| Material Grade | H, K, M, P |
| Rake | Neutral |
| Shape | Round |
| High precision|Excellent surface finish|Cost effective compared to solid carbide solutions|Easy to apply|Stiff carbide shank for high precision demands|Insert geometries and grades for all materials |
| F cutting edge condition |
| 1 corner |
| 25.4 mm Dia cutting |
| 1-side cutting |
| 2 effective cutting edge |
| 20 life cycle state |
