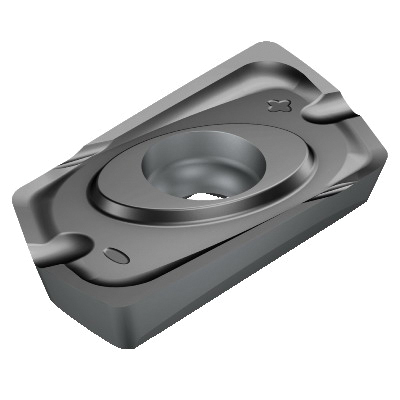

Sandvik Coromant 5747170 CoroMill® 790 Milling Insert, R790-160408PH-PL 1010, R-Rectangle, R790..PH-PL Insert, Carbide, 1010, R790-160408PH-PL 1010
R790 Milling Inserts
1251454
MFG #: 5747170
Sandvik Coromant
59.01000
/ ea
- Alternate Catalog Number: R790-160408PH-PL 1010
- ANSI Code: R790-160408PH-PL 1010
- Catalog Number: 5747170
- Corner Radius: 0.0314 in
- Country of Origin: SE
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Right
- Hole Diameter: 0.1614 in
- Includes: 11 mm
- ISO Code: R790-160408PH-PL 1010
- Item Group: 350
- Lead Angle: 90 deg
- Length: 0.5118 in
- Material Application: Hardened Material, Stainless Steel, Steel and Heat Resistant Super Alloys
- Relief Angle: 4 mm
- Series: CoroMill® 790
- Thickness: 0.1574 in
- Type: R - Rectangle
- UPC 11: 69826249101
- Width: 0.433 in
- Width UOM: IN
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: PL
- Inscribed Circle: 0.433 in
- Insert Size: 11 mm
- Insert Style: R790..PH-PL
- Manufacturer's Grade: 1010
- Material: Carbide
- Material Grade: H/M/P/S
- Rake: Positive
- Shape: R-Rectangle
Sandvik Coromant Milling Insert, Series: CoroMill® 790, R790..PH-PL Insert, R-Rectangle, 0.433 in Inscribed Circle, 0.1574 in Thickness, 0.433 in Width, 0.5118 in Length, PL Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 1010, ANSI Code: R790-160408PH-PL 1010, ISO Code: R790-160408PH-PL 1010, Right Hand, Carbide, PVD Coated, Material Grade: H/M/P/S
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 20 deg clearance |
| 12 mm D cutting |
| 1 mm L wiper edge |
| 90 deg major cutting edge |
| 12 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
