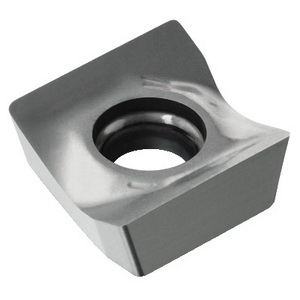

Sandvik Coromant R590-110508H-PL 1130 COROMILL 590 INSERT 7101123
R590 Milling Inserts
1035138
MFG #: 7101123
Sandvik Coromant
28.44000
/ ea
- Alternate Catalog Number: R590-110508H-PL 1130
- ANSI Code: R590-110508H-PL 1130
- Catalog Number: 7101123
- Corner Radius: 0.031 in
- Country of Origin: SE
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Right
- ISO Code: R590-110508H-PL 1130
- Item Group: 350
- Length: 0.5232 in
- Series: CoroMill® Century
- Thickness: 0.197 in
- Width: 0.453 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: PL
- Manufacturer's Grade: 1130
- Material: Carbide
- Material Grade: P
Sandvik Coromant Milling Insert, Series: CoroMill® Century, 0.197 in Thickness, 0.453 in Width, 0.5232 in Length, PL Chipbreaker, 0.031 in Corner Radius, Manufacturer's Grade: 1130, ANSI Code: R590-110508H-PL 1130, ISO Code: R590-110508H-PL 1130, Right Hand, Carbide, PVD Coated, Material Grade: P
- Features
| 90 deg major cutting edge |
| 0.433 in L effective cutting edge |
| 0.067 in L wiper edge |
| 7.874 in wiper edge radius |
| 20 life cycle state |
