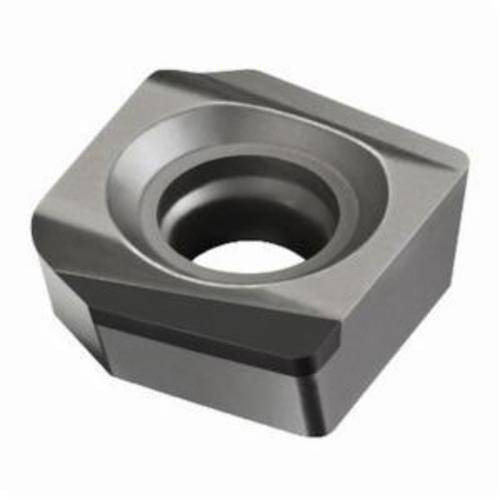

Sandvik Coromant 6136352 CoroMill® Century Milling insert, R590-110508H-PR2-KW CB50 ANSI, S-Square, R590..PR2-KW Insert, CB50
R590 Milling Inserts
1242671
MFG #: 6136352
Sandvik Coromant
216.03000
/ ea
- Alternate Catalog Number: R590-110508H-PR2-KW CB50
- ANSI Code: R590-110508H-PR2-KW CB50
- Catalog Number: 6136352
- Corner Radius: 0.031 in
- Country of Origin: PL
- Finish: Uncoated
- Gross Weight Per Pack: 0.1100 lb
- Hand of Insert: Right
- Hole Diameter: 0.1811 in
- ISO Code: R590-110508H-PR2-KW CB50
- Item Group: 620
- Lead Angle: 90 °
- Material Application: Cast Iron
- Series: CoroMill® Century
- Thickness: 0.197 in
- UPC 11: 69826264398
- Width: 0.453 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: NW
- Inscribed Circle: 0.433 in
- Insert Size: 110508
- Insert Style: R590..PR2-KW
- Manufacturer's Grade: CB50
- Material: Carbide
- Material Grade: K
- Shape: Proprietary
Sandvik Coromant Milling insert, Series: CoroMill® Century, R590..PR2-KW Insert, S-Square, 0.433 in Inscribed Circle, 0.1968 in Thickness, 0.4527 in Width, NW Chipbreaker, 0.0314 in Corner Radius, 5 deg Rake, 90 deg Lead Angle, 0.1811 in Hole Dia, Manufacturer's Grade: CB50, ANSI Code: R590-110508H-PR2-KW CB50, ISO Code: R590-110508H-PR2-KW CB50, Right Hand, Carbide, Uncoated, Material Grade: K
- Features
| 2 mm D maximum cutting |
| 7.1 mm L wiper edge |
| 393 mm wiper edge radius |
| Sharp cutting edge |
| 1 cutting edge |
| 40 - 60 countersunk hole and non-flat surface clamping interface |
| 90 deg cutting edge |
| 2 mm L effective cutting edge |
| 1-Side cutting |
| H tolerance class |
| Features wiper edge property |
| 20 life cycle state |
