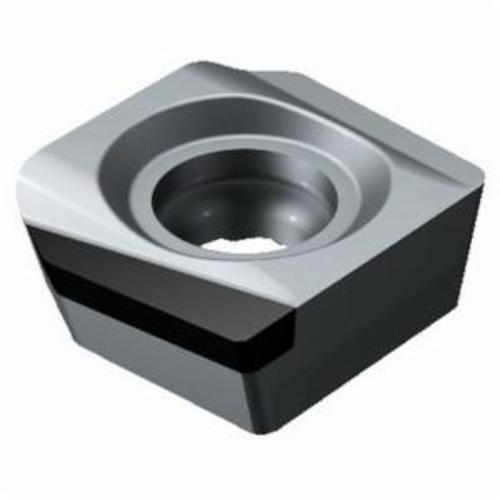

Sandvik Coromant 5747639 CoroMill® Century Milling insert, R590-1105H-RC2-NW CD10 ANSI, D-Diamond, R/L590..H-P..-NW Insert
R590/L590 Milling Inserts
1242682
MFG #: 5747639
Sandvik Coromant
256.69000
/ ea
- Alternate Catalog Number: R590-1105H-RC2-NW CD10
- ANSI Code: R590-1105H-RC2-NW CD10
- Catalog Number: 5747639
- Corner Radius: 0.0157 in
- Country of Origin: US
- Finish: Uncoated
- Gross Weight Per Pack: 0.1300 lb
- Hand of Insert: Right
- Hole Diameter: 0.1811 in
- ISO Code: R590-1105H-RC2-NW CD10
- Item Group: 630
- Lead Angle: 90 °
- Material Application: Non-Ferrous Metals
- Series: CoroMill® Century
- Thickness: 0.197 in
- UPC 11: 69826219087
- Width: 0.453 in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: NW
- Inscribed Circle: 0.433 in
- Insert Size: 1105
- Insert Style: R/L590..H-P..-NW
- Manufacturer's Grade: CD10
- Material: Carbide
- Material Grade: N
- Shape: Proprietary
Sandvik Coromant Milling insert, Series: CoroMill® Century, R/L590..H-P..-NW Insert, D-Diamond, 0.433 in Inscribed Circle, 0.1968 in Thickness, 0.4527 in Width, NW Chipbreaker, 20 deg Rake, 90 deg Lead Angle, 0.1811 in Hole Dia, Manufacturer's Grade: CD10, ANSI Code: R590-1105H-RC2-NW CD10, ISO Code: R590-1105H-RC2-NW CD10, Right Hand, Carbide, Uncoated, Material Grade: N
- Features
| 2 mm D maximum cutting |
| 1.7 mm L corner chamfer |
| 0.3 mm W face land |
| 6 mm L wiper edge |
| 500 mm wiper edge radius |
| Negative land cutting edge |
| 1 cutting edge |
| 1.2 mm W corner chamfer |
| 40 - 60 countersunk hole and non-flat surface clamping interface |
| 5 deg face land |
| 45 deg corner chamfer |
| 90 deg cutting edge |
| 3 mm L effective cutting edge |
| 1-Side cutting |
| H tolerance class |
| Features wiper edge property |
| 20 life cycle state |
