Sandvik Coromant

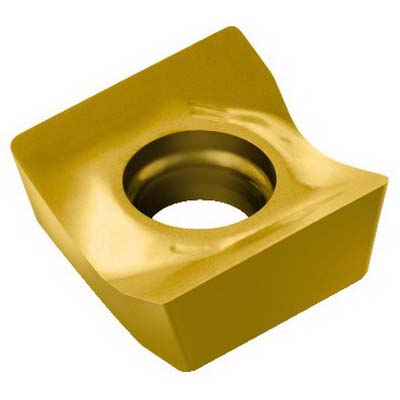

Sandvik Coromant 5747607 Century Milling Insert, R590-110508H-KL 1020 ANSI, C-80 deg Diamond, R/L590..H..L Insert, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5747607 Century Milling Insert, R590-110508H-KL 1020 ANSI, C-80 deg Diamond, R/L590..H..L Insert, Carbide
SKU1242698
MFGR #5747607
Your Cost: $26.34/ea
List: Sandvik Coromant Milling Insert, Series: Century, R/L590..H..L Insert, C-80 deg Diamond, 0.433 in Inscribed Circle, 0.1968 in Thickness, 0.4527 in Width, 0.5118 in Length, KL Chipbreaker, 0.0314 in Corner Radius, 25 deg Positive Rake, 90 deg Lead Angle, 0.1811 in Hole Dia, Manufacturer's Grade: 1020, ANSI Code: R590-110508H-KL 1020, ISO Code: R590-110508H-KL 1020, Right Hand, Carbide, PVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Series: Century, R/L590..H..L Insert, C-80 deg Diamond, 0.433 in Inscribed Circle, 0.1968 in Thickness, 0.4527 in Width, 0.5118 in Length, KL Chipbreaker, 0.0314 in Corner Radius, 25 deg Positive Rake, 90 deg Lead Angle, 0.1811 in Hole Dia, Manufacturer's Grade: 1020, ANSI Code: R590-110508H-KL 1020, ISO Code: R590-110508H-KL 1020, Right Hand, Carbide, PVD Coated, Material Grade: K
Alternate Catalog Number R590-110508H-KL 1020 ANSI Code R590-110508H-KL 1020 Catalog Number 5747607 Corner Radius 0.031 in Country of Origin SE Finish PVD-TiAlN Coated Gross Weight Per Pack 0.1500 lb Hand of Insert Right Hole Diameter 0.1811 in ISO Code R590-110508H-KL 1020 Item Group 350 Lead Angle 90 ° Material Application Cast Iron Series CoroMill® Century Thickness 0.197 in UPC 11 69826244100 Width 0.453 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KL Inscribed Circle 0.433 in Insert Size 110508 Insert Style R/L590..H..L Manufacturer's Grade 1020 Material Carbide Material Grade K Shape Proprietary 40 - 60 deg countersunk hole and non-flat surface clamping interface 10 mm D cutting 1.7 mm L wiper edge 200 mm wiper edge radius 90 deg major cutting edge 11 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting 0.05 - 0.15 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | R590-110508H-KL 1020 |
| ANSI Code | R590-110508H-KL 1020 |
| Catalog Number | 5747607 |
| Corner Radius | 0.031 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN Coated |
| Gross Weight Per Pack | 0.1500 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1811 in |
| ISO Code | R590-110508H-KL 1020 |
| Item Group | 350 |
| Lead Angle | 90 ° |
| Material Application | Cast Iron |
| Series | CoroMill® Century |
| Thickness | 0.197 in |
| UPC 11 | 69826244100 |
| Width | 0.453 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KL |
| Inscribed Circle | 0.433 in |
| Insert Size | 110508 |
| Insert Style | R/L590..H..L |
| Manufacturer's Grade | 1020 |
| Material | Carbide |
| Material Grade | K |
| Shape | Proprietary |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 10 mm D cutting |
| 1.7 mm L wiper edge |
| 200 mm wiper edge radius |
| 90 deg major cutting edge |
| 11 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.05 - 0.15 mm/r cutting feed |
