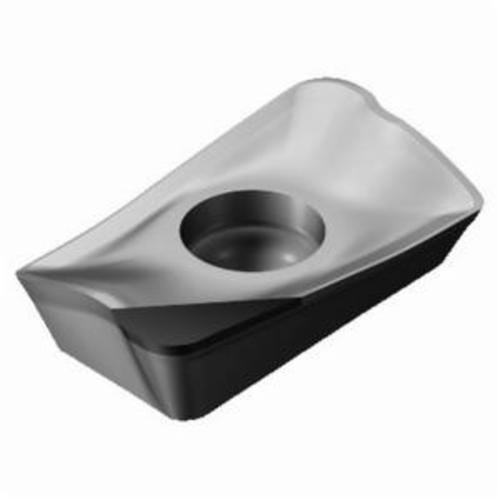

Sandvik Coromant 5745616 CoroMill® 390 Milling insert, R390-170408E-P6-NL CD10 ANSI, R-Rectangle, 1704 R390..E-P..-NL Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5745616 CoroMill® 390 Milling insert, R390-170408E-P6-NL CD10 ANSI, R-Rectangle, 1704 R390..E-P..-NL Insert
SKU1234879
MFGR #5745616
Your Cost: $212.55/ea
Sandvik Coromant Milling insert, Series: CoroMill® 390, R390..E-P..-NL Insert, 1704 Insert, R-Rectangle, 0.378 in Inscribed Circle, 0.1874 in Thickness, 0.378 in Width, 0.236 in Length, NL Chipbreaker, 0.031 in Corner Radius, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: CD10, ANSI Code: R390-170408E-P6-NL CD10, ISO Code: R390-170408E-P6-NL CD10, Right Hand, Carbide, Uncoated, Material Grade: N
Sandvik Coromant Milling insert, Series: CoroMill® 390, R390..E-P..-NL Insert, 1704 Insert, R-Rectangle, 0.378 in Inscribed Circle, 0.1874 in Thickness, 0.378 in Width, 0.236 in Length, NL Chipbreaker, 0.031 in Corner Radius, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: CD10, ANSI Code: R390-170408E-P6-NL CD10, ISO Code: R390-170408E-P6-NL CD10, Right Hand, Carbide, Uncoated, Material Grade: N
Alternate Catalog Number R390-170408E-P6-NL CD10 ANSI Code R390-170408E-P6-NL CD10 Catalog Number 5745616 Corner Radius 0.031 in Country of Origin PL Finish Uncoated Gross Weight Per Pack 0.1200 lb Hand of Insert Right Hole Diameter 0.1614 in ISO Code R390-170408E-P6-NL CD10 Item Group 630 Lead Angle 90 ° Length 0.687 in Material Application Non-Ferrous Metals Series CoroMill® 390 Thickness 0.187 in UPC 11 69826225161 Width 0.378 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker NL Inscribed Circle 0.378 in Insert Size 170408 Insert Style R390..E-P..-NL Manufacturer's Grade CD10 Material Carbide Material Grade N Rake Positive Shape Rectangle 19 deg major clearance 6 mm D maximum cutting 1.8 mm L wiper edge Sharp cutting edge 1 cutting edge 40 - 60 countersunk hole and non-flat surface clamping interface 90 deg cutting edge 17.45 mm L cutting edge 6 mm L effective cutting edge 1-Side cutting E tolerance class Features wiper edge property 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | R390-170408E-P6-NL CD10 |
| ANSI Code | R390-170408E-P6-NL CD10 |
| Catalog Number | 5745616 |
| Corner Radius | 0.031 in |
| Country of Origin | PL |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.1200 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1614 in |
| ISO Code | R390-170408E-P6-NL CD10 |
| Item Group | 630 |
| Lead Angle | 90 ° |
| Length | 0.687 in |
| Material Application | Non-Ferrous Metals |
| Series | CoroMill® 390 |
| Thickness | 0.187 in |
| UPC 11 | 69826225161 |
| Width | 0.378 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | NL |
| Inscribed Circle | 0.378 in |
| Insert Size | 170408 |
| Insert Style | R390..E-P..-NL |
| Manufacturer's Grade | CD10 |
| Material | Carbide |
| Material Grade | N |
| Rake | Positive |
| Shape | Rectangle |
| 19 deg major clearance |
| 6 mm D maximum cutting |
| 1.8 mm L wiper edge |
| Sharp cutting edge |
| 1 cutting edge |
| 40 - 60 countersunk hole and non-flat surface clamping interface |
| 90 deg cutting edge |
| 17.45 mm L cutting edge |
| 6 mm L effective cutting edge |
| 1-Side cutting |
| E tolerance class |
| Features wiper edge property |
| 20 life cycle state |
