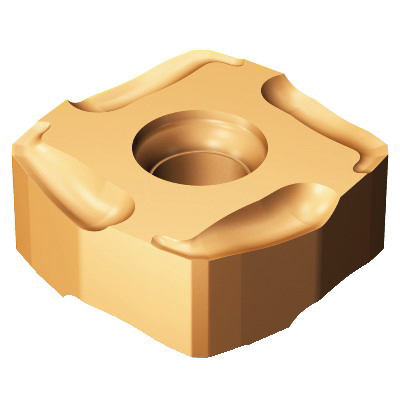

Sandvik Coromant 5745396 CoroMill® 365 Milling Insert, R365-1505ZNE-PL 1030, R/L365..E-PL Insert, Carbide, 1030, R365-1505ZNE-PL 1030
R365/L365 Milling Inserts
1234724
MFG #: 5745396
Sandvik Coromant
26.61000
/ ea
- ANSI Code: R365-1505ZNE-PL 1030
- Catalog Number: 5745396
- Corner Radius: 0.012 in
- Country of Origin: SE
- Finish: PVD-TiAlN Coated
- Gross Weight Per Pack: 0.3600 lb
- Hand of Insert: Right
- Hole Diameter: 0.1811 in
- ISO Code: R365-1505ZNE-PL 1030
- Lead Angle: 65 °
- Material Application: Steel
- Series: CoroMill® 365
- Thickness: 0.223 in
- UPC 11: 69826237893
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: PL
- Inscribed Circle: 0.591 in
- Insert Size: 1505
- Insert Style: R/L365..E-PL
- Manufacturer's Grade: 1030
- Material: Carbide
- Material Grade: P
- Shape: Rectangle
Sandvik Coromant Milling Insert, Series: CoroMill® 365, R/L365..E-PL Insert, 0.5905 in Inscribed Circle, 0.2228 in Thickness, 0.5118 in Length, PL Chipbreaker, 0.0118 in Corner Radius, 20 deg Negative Rake, 25 deg Lead Angle, 0.1811 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: R365-1505ZNE-PL 1030, ISO Code: R365-1505ZNE-PL 1030, Right Hand, Carbide, PVD Coated, Material Grade: P
- Features
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 0.82 mm L x 0.71 mm W corner chamfer |
| 1.5 mm L wiper edge |
| 150 mm wiper edge radius |
| 65 deg major cutting edge |
| 35 deg corner chamfer |
| 6.4 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 4 corner |
| S cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
| 0.12 - 0.31 mm/r cutting feed |
