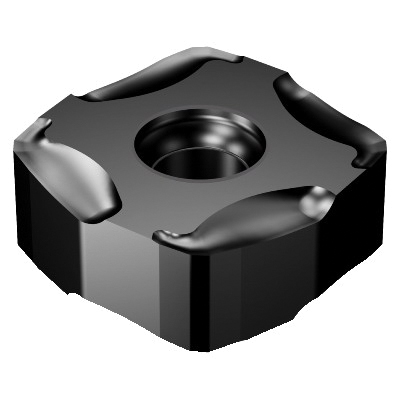

Sandvik Coromant 5745375 CoroMill® 365 Milling Insert, R365-1505ZNE-KL K20D, R/L365..E-KL Insert, Carbide, K20D, R365-1505ZNE-KL K20D
R365/L365 Milling Inserts
1234735
MFG #: 5745375
Sandvik Coromant
27.75000
/ ea
- Alternate Catalog Number: R365-1505ZNE-KL K20D
- ANSI Code: R365-1505ZNE-KL K20D
- Catalog Number: 5745375
- Corner Radius: 0.012 in
- Country of Origin: SE
- Finish: MTCVD-TiCN+AL2O3 Coated
- Gross Weight Per Pack: 0.4000 lb
- Hand of Insert: Right
- Hole Diameter: 0.1811 in
- ISO Code: R365-1505ZNE-KL K20D
- Item Group: 350
- Lead Angle: 65 °
- Material Application: Cast Iron
- Series: CoroMill® 365
- Thickness: 0.223 in
- UPC 11: 69826237890
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: KL
- Inscribed Circle: 0.591 in
- Insert Size: 1505
- Insert Style: R/L365..E-KL
- Manufacturer's Grade: K20D
- Material: Carbide
- Material Grade: K
- Shape: Rectangle
Sandvik Coromant Milling Insert, Series: CoroMill® 365, R/L365..E-KL Insert, 0.5905 in Inscribed Circle, 0.2228 in Thickness, 0.5118 in Length, KL Chipbreaker, 0.0118 in Corner Radius, 20 deg Negative Rake, 25 deg Lead Angle, 0.1811 in Hole Dia, Manufacturer's Grade: K20D, ANSI Code: R365-1505ZNE-KL K20D, ISO Code: R365-1505ZNE-KL K20D, Right Hand, Carbide, MTCVD Coated, Material Grade: K
- Features
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 0.82 mm L x 0.71 mm W corner chamfer |
| 1.5 mm L wiper edge |
| 150 mm wiper edge radius |
| 65 deg major cutting edge |
| 35 deg corner chamfer |
| 6.4 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 4 corner |
| S cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
| 0.15 - 0.31 mm/r cutting feed |
