Sandvik Coromant

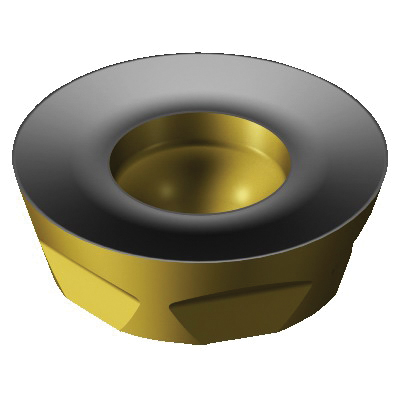

Sandvik Coromant 5744665 CoroMill® 300 Milling Insert, R300-2060M-PM 4240 ANSI, R-Round, R300..M-PM Insert, Carbide, 4240
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5744665 CoroMill® 300 Milling Insert, R300-2060M-PM 4240 ANSI, R-Round, R300..M-PM Insert, Carbide, 4240
SKU1251029
MFGR #5744665
Your Cost: $23.96/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..M-PM Insert, R-Round, 0.7874 in Inscribed Circle, 0.2551 in Thickness, PM Chipbreaker, 0.3937 in Corner Radius, Positive Rake, 0 deg Lead Angle, 0.2755 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: R300-2060M-PM 4240, ISO Code: R300-2060M-PM 4240, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..M-PM Insert, R-Round, 0.7874 in Inscribed Circle, 0.2551 in Thickness, PM Chipbreaker, 0.3937 in Corner Radius, Positive Rake, 0 deg Lead Angle, 0.2755 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: R300-2060M-PM 4240, ISO Code: R300-2060M-PM 4240, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
ANSI Code R300-2060M-PM 4240 Catalog Number 5744665 Corner Radius 0.3937 in Country of Origin US Finish MTCVD Coated Gross Weight Per Pack 0.0600 lb Hand of Insert Neutral Hole Diameter 0.2755 in ISO Code R300-2060M-PM 4240 Lead Angle 0 deg Length 6.48 mm Series CoroMill® 300 Thickness 0.2551 in Type R300..M-PM UPC 11 69826249072 Warranty R - Round Width 10 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 0.7874 in Insert Size R to Round Insert Style R300..M-PM Manufacturer's Grade 4240 Material Carbide Material Grade P Rake Positive Shape R-Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 15 deg clearance 2.93 mm D cutting 1-side cutting 20 life cycle state 8 corner E cutting edge condition 8 cutting edge Screw clamp mounting 0.7 to 0.42 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | R300-2060M-PM 4240 |
| Catalog Number | 5744665 |
| Corner Radius | 0.3937 in |
| Country of Origin | US |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0600 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2755 in |
| ISO Code | R300-2060M-PM 4240 |
| Lead Angle | 0 deg |
| Length | 6.48 mm |
| Series | CoroMill® 300 |
| Thickness | 0.2551 in |
| Type | R300..M-PM |
| UPC 11 | 69826249072 |
| Warranty | R - Round |
| Width | 10 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 0.7874 in |
| Insert Size | R to Round |
| Insert Style | R300..M-PM |
| Manufacturer's Grade | 4240 |
| Material | Carbide |
| Material Grade | P |
| Rake | Positive |
| Shape | R-Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 2.93 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 8 corner |
| E cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
| 0.7 to 0.42 mm/r cutting feed |
