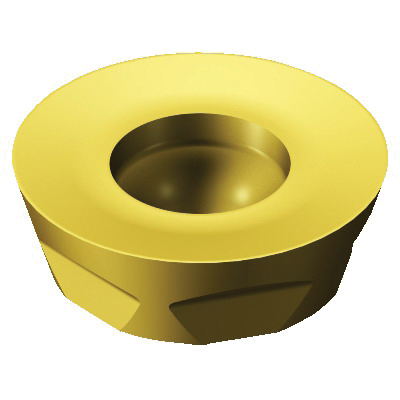

Sandvik Coromant 5744625 CoroMill® 300 Milling Insert, R300-2570E-ML 2030 ANSI, R-Round, R300..E-ML (INCH) Insert, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 5744625 CoroMill® 300 Milling Insert, R300-2570E-ML 2030 ANSI, R-Round, R300..E-ML (INCH) Insert, Carbide
SKU1251032
MFGR #5744625
Your Cost: $32.45/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-ML (INCH) Insert, R-Round, 1 in Inscribed Circle, 5/16 in Thickness, ML Chipbreaker, 1/2 in Corner Radius, Positive Rake, 0.2992 in Hole Dia, Manufacturer's Grade: 2030, ANSI Code: R300-2570E-ML 2030, ISO Code: R300-2570E-ML 2030, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-ML (INCH) Insert, R-Round, 1 in Inscribed Circle, 5/16 in Thickness, ML Chipbreaker, 1/2 in Corner Radius, Positive Rake, 0.2992 in Hole Dia, Manufacturer's Grade: 2030, ANSI Code: R300-2570E-ML 2030, ISO Code: R300-2570E-ML 2030, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
ANSI Code R300-2570E-ML 2030 Catalog Number 5744625 Corner Radius 1/2 in Finish PVD Coated Gross Weight Per Pack 0.1100 lb Hand of Insert Neutral Hole Diameter 0.2992 in ISO Code R300-2570E-ML 2030 Lead Angle R300..E-ML (INCH) Length R300-2570E-ML 2030 Series CoroMill® 300 Thickness 5/16 in Type M, S UPC 11 69826249074 Warranty 7.94 mm Width CoroMill® 300 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker ML Inscribed Circle 1 in Insert Size R300-2570E-ML 2030 Insert Style R300..E-ML (INCH) Manufacturer's Grade 2030 Material Carbide Material Grade M/S Maximum Depth of Cut R - Round Rake Positive Shape R-Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 15 deg clearance 3.72 mm D cutting 1-side cutting 40 life cycle state 8 corner F cutting edge condition 8 cutting edge 0.05 to 0.4 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | R300-2570E-ML 2030 |
| Catalog Number | 5744625 |
| Corner Radius | 1/2 in |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.1100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2992 in |
| ISO Code | R300-2570E-ML 2030 |
| Lead Angle | R300..E-ML (INCH) |
| Length | R300-2570E-ML 2030 |
| Series | CoroMill® 300 |
| Thickness | 5/16 in |
| Type | M, S |
| UPC 11 | 69826249074 |
| Warranty | 7.94 mm |
| Width | CoroMill® 300 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | ML |
| Inscribed Circle | 1 in |
| Insert Size | R300-2570E-ML 2030 |
| Insert Style | R300..E-ML (INCH) |
| Manufacturer's Grade | 2030 |
| Material | Carbide |
| Material Grade | M/S |
| Maximum Depth of Cut | R - Round |
| Rake | Positive |
| Shape | R-Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 3.72 mm D cutting |
| 1-side cutting |
| 40 life cycle state |
| 8 corner |
| F cutting edge condition |
| 8 cutting edge |
| 0.05 to 0.4 mm/r cutting feed |
