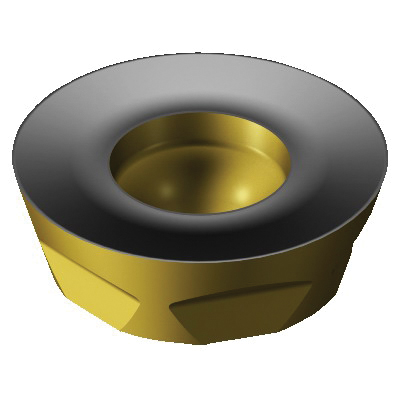

Sandvik Coromant 5744564 CoroMill® 300 Milling Insert, R300-1648E-PM 4240, R-Round, R300..E-PM Insert, Carbide, 4240, R300-1648E-PM 4240
Custom_Product_Images_Illustration
Sandvik Coromant 5744564 CoroMill® 300 Milling Insert, R300-1648E-PM 4240, R-Round, R300..E-PM Insert, Carbide, 4240, R300-1648E-PM 4240
SKU1251008
MFGR #5744564
Your Cost: $24.27/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-PM Insert, R-Round, 0.6299 in Inscribed Circle, 0.1874 in Thickness, PM Chipbreaker, 0.3149 in Corner Radius, Positive Rake, 15 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: R300-1648E-PM 4240, ISO Code: R300-1648E-PM 4240, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-PM Insert, R-Round, 0.6299 in Inscribed Circle, 0.1874 in Thickness, PM Chipbreaker, 0.3149 in Corner Radius, Positive Rake, 15 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: R300-1648E-PM 4240, ISO Code: R300-1648E-PM 4240, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
ANSI Code R300-1648E-PM 4240 Catalog Number 5744564 Corner Radius 0.3149 in Country of Origin US Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2244 in ISO Code R300-1648E-PM 4240 Lead Angle 15 deg Length MTCVD Coated Series CoroMill® 300 Thickness 0.1874 in Type R300-1648E-PM 4240 UPC 11 69826233420 Width R300..E-PM Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 0.6299 in Insert Size Neutral Insert Style R300..E-PM Manufacturer's Grade 4240 Material Carbide Material Grade K/P Rake Positive Shape R-Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 15 deg clearance 4 mm D cutting 1-side cutting 20 life cycle state 6 corner E cutting edge condition 6 cutting edge Screw clamp mounting 0.05 to 0.42 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | R300-1648E-PM 4240 |
| Catalog Number | 5744564 |
| Corner Radius | 0.3149 in |
| Country of Origin | US |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2244 in |
| ISO Code | R300-1648E-PM 4240 |
| Lead Angle | 15 deg |
| Length | MTCVD Coated |
| Series | CoroMill® 300 |
| Thickness | 0.1874 in |
| Type | R300-1648E-PM 4240 |
| UPC 11 | 69826233420 |
| Width | R300..E-PM |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 0.6299 in |
| Insert Size | Neutral |
| Insert Style | R300..E-PM |
| Manufacturer's Grade | 4240 |
| Material | Carbide |
| Material Grade | K/P |
| Rake | Positive |
| Shape | R-Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 4 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 6 corner |
| E cutting edge condition |
| 6 cutting edge |
| Screw clamp mounting |
| 0.05 to 0.42 mm/r cutting feed |
