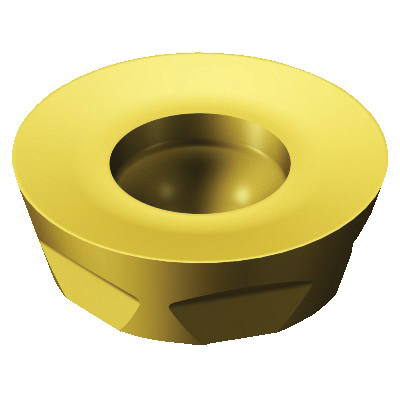

Sandvik Coromant 5744349 CoroMill® 300 Milling Insert, R300-1032E-PM 1025, R-Round, R300..E-PM Insert, Carbide, 1025, R300-1032E-PM 1025
R300 Milling Inserts
1251121
MFG #: 5744349
Sandvik Coromant
17.67000
/ ea
- Alternate Catalog Number: R300-1032E-PM 1025
- ANSI Code: R300-1032E-PM 1025
- Catalog Number: 5744349
- Corner Radius: 0.1968 in
- Country of Origin: US
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.1732 in
- ISO Code: R300-1032E-PM 1025
- Item Group: 350
- Lead Angle: 15 deg
- Length: 15 deg
- Series: CoroMill® 300
- Thickness: 1/8 in
- Type: Neutral
- UPC 11: 69826212647
- Width: CoroMill® 300
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: PM
- Inscribed Circle: 0.3937 in
- Insert Size: R300-1032E-PM 1025
- Insert Style: R300..E-PM
- Manufacturer's Grade: 1025
- Material: Carbide
- Material Grade: H/M/P/S
- Rake: Positive
- Shape: R-Round
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-PM Insert, R-Round, 0.3937 in Inscribed Circle, 1/8 in Thickness, PM Chipbreaker, 0.1968 in Corner Radius, Positive Rake, 15 deg Lead Angle, 0.1732 in Hole Dia, Manufacturer's Grade: 1025, ANSI Code: R300-1032E-PM 1025, ISO Code: R300-1032E-PM 1025, Neutral Hand, Carbide, PVD Coated, Material Grade: H/M/P/S
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 2.5 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 6 corner |
| E cutting edge condition |
| 6 cutting edge |
| Screw clamp mounting |
| 0.05 to 0.35 mm/r cutting feed |
