Sandvik Coromant

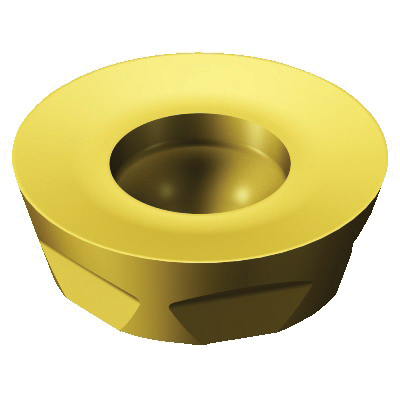

Sandvik Coromant 5744333 CoroMill® 300 Milling Insert, R300-0720E-MM 2040 ANSI, R-Round, R300..E-MM (INCH) Insert, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5744333 CoroMill® 300 Milling Insert, R300-0720E-MM 2040 ANSI, R-Round, R300..E-MM (INCH) Insert, Carbide
SKU1250821
MFGR #5744333
Your Cost: $15.70/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-MM (INCH) Insert, R-Round, 0.2755 in Inscribed Circle, 0.0783 in Thickness, MM Chipbreaker, 0.1377 in Corner Radius, Positive Rake, 15 deg Lead Angle, 0.0984 in Hole Dia, Manufacturer's Grade: 2040, ANSI Code: R300-0720E-MM 2040, ISO Code: R300-0720E-MM 2040, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-MM (INCH) Insert, R-Round, 0.2755 in Inscribed Circle, 0.0783 in Thickness, MM Chipbreaker, 0.1377 in Corner Radius, Positive Rake, 15 deg Lead Angle, 0.0984 in Hole Dia, Manufacturer's Grade: 2040, ANSI Code: R300-0720E-MM 2040, ISO Code: R300-0720E-MM 2040, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Alternate Catalog Number R300-0720E-MM 2040 ANSI Code R300-0720E-MM 2040 Catalog Number 5744333 Corner Radius 0.1377 in Country of Origin US Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.0984 in Includes 1.99 mm ISO Code R300-0720E-MM 2040 Item Group 350 Lead Angle 15 deg Length Neutral Series CoroMill® 300 Thickness 0.0783 in Type R to Round UPC 11 69826217384 Width 3.5 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MM Inscribed Circle 0.2755 in Insert Size R300..E-MM (INCH) Insert Style R300..E-MM (INCH) Manufacturer's Grade 2040 Material Carbide Material Grade M Rake Positive Shape R-Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 15 deg clearance 3.5 mm D cutting 1-side cutting 20 life cycle state 4 corner E cutting edge condition 4 cutting edge Screw clamp mounting 0.05 to 0.21 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R300-0720E-MM 2040 |
| ANSI Code | R300-0720E-MM 2040 |
| Catalog Number | 5744333 |
| Corner Radius | 0.1377 in |
| Country of Origin | US |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.0984 in |
| Includes | 1.99 mm |
| ISO Code | R300-0720E-MM 2040 |
| Item Group | 350 |
| Lead Angle | 15 deg |
| Length | Neutral |
| Series | CoroMill® 300 |
| Thickness | 0.0783 in |
| Type | R to Round |
| UPC 11 | 69826217384 |
| Width | 3.5 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MM |
| Inscribed Circle | 0.2755 in |
| Insert Size | R300..E-MM (INCH) |
| Insert Style | R300..E-MM (INCH) |
| Manufacturer's Grade | 2040 |
| Material | Carbide |
| Material Grade | M |
| Rake | Positive |
| Shape | R-Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 3.5 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
| 0.05 to 0.21 mm/r cutting feed |
