Sandvik Coromant
Sandvik Coromant 5744213 CoroMill® 290 Milling Insert, R290-12T308E-PL 530, S-Square, R290..E-PL Insert, Carbide, 530, R290-12T308E-PL 530

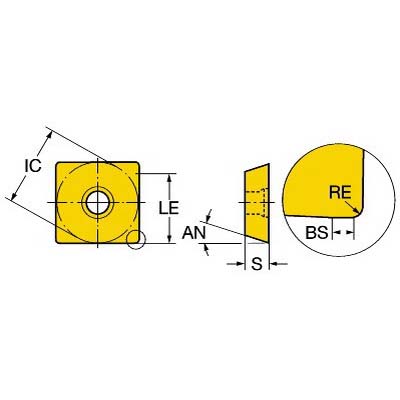

Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5744213 CoroMill® 290 Milling Insert, R290-12T308E-PL 530, S-Square, R290..E-PL Insert, Carbide, 530, R290-12T308E-PL 530
SKU1251329
MFGR #5744213
Your Cost: $20.80/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 290, R290..E-PL Insert, S-Square, 0.5232 in Inscribed Circle, 0.1562 in Thickness, 0.5232 in Length, PL Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 530, ANSI Code: R290-12T308E-PL 530, ISO Code: R290-12T308E-PL 530, Right Hand, Carbide, Uncoated, Material Grade: H/M/P
Sandvik Coromant Milling Insert, Series: CoroMill® 290, R290..E-PL Insert, S-Square, 0.5232 in Inscribed Circle, 0.1562 in Thickness, 0.5232 in Length, PL Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 530, ANSI Code: R290-12T308E-PL 530, ISO Code: R290-12T308E-PL 530, Right Hand, Carbide, Uncoated, Material Grade: H/M/P
Alternate Catalog Number R290-12T308E-PL 530 ANSI Code R290-12T308E-PL 530 Catalog Number 5744213 Corner Radius 0.0314 in Country of Origin IN Finish Uncoated Gross Weight Per Pack 0.0200 lb Hand of Insert Right Hole Diameter 0.1614 in ISO Code R290-12T308E-PL 530 Item Group 350 Lead Angle 90 deg Length 0.5232 in Material Application Hardened Material, Steel and Stainless Steel Relief Angle 3.96875 mm Series CoroMill® 290 Thickness 0.1562 in Type CoroMill® 290 UPC 11 69826201336 Warranty S - Square Width R290-12T308E-PL 530 Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PL Inscribed Circle 0.5232 in Insert Size 4.1 mm Insert Style R290..E-PL Manufacturer's Grade 530 Material Carbide Material Grade H/M/P Rake Positive Shape S-Square 40 - 60 deg countersunk hole and non-flat surface clamping interface 18 deg clearance 6 mm D cutting 1.46 mm L wiper edge 90 deg included 90 deg major cutting edge 6.4 mm L effective cutting edge 1-side cutting 20 life cycle state 4 corner E cutting edge condition 4 cutting edge Screw clamp mounting 0.07 - 0.12 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | R290-12T308E-PL 530 |
| ANSI Code | R290-12T308E-PL 530 |
| Catalog Number | 5744213 |
| Corner Radius | 0.0314 in |
| Country of Origin | IN |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1614 in |
| ISO Code | R290-12T308E-PL 530 |
| Item Group | 350 |
| Lead Angle | 90 deg |
| Length | 0.5232 in |
| Material Application | Hardened Material, Steel and Stainless Steel |
| Relief Angle | 3.96875 mm |
| Series | CoroMill® 290 |
| Thickness | 0.1562 in |
| Type | CoroMill® 290 |
| UPC 11 | 69826201336 |
| Warranty | S - Square |
| Width | R290-12T308E-PL 530 |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PL |
| Inscribed Circle | 0.5232 in |
| Insert Size | 4.1 mm |
| Insert Style | R290..E-PL |
| Manufacturer's Grade | 530 |
| Material | Carbide |
| Material Grade | H/M/P |
| Rake | Positive |
| Shape | S-Square |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 18 deg clearance |
| 6 mm D cutting |
| 1.46 mm L wiper edge |
| 90 deg included |
| 90 deg major cutting edge |
| 6.4 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
| 0.07 - 0.12 mm/r cutting feed |
