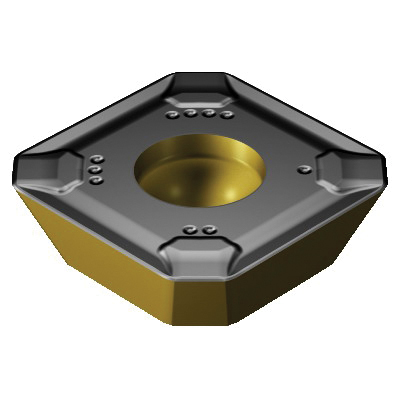

Sandvik Coromant 5743920 CoroMill® 245 Milling Insert, R245-12 T3 M-PM 4230 ANSI, S-Square, R245..M-PM Insert, Carbide, 4230
Custom_Product_Images_Illustration
Sandvik Coromant 5743920 CoroMill® 245 Milling Insert, R245-12 T3 M-PM 4230 ANSI, S-Square, R245..M-PM Insert, Carbide, 4230
SKU383161
MFGR #5743920
Your Cost: $17.10/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 245, R245..M-PM Insert, S-Square, 0.5275 in Inscribed Circle, 0.1562 in Thickness, 0.5275 in Length, PM Chipbreaker, 0.059 in Corner Radius, 15 deg Positive Rake, 45 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 4230, ANSI Code: R245-12 T3 M-PM 4230, ISO Code: R245-12 T3 M-PM 4230, Right Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Milling Insert, Series: CoroMill® 245, R245..M-PM Insert, S-Square, 0.5275 in Inscribed Circle, 0.1562 in Thickness, 0.5275 in Length, PM Chipbreaker, 0.059 in Corner Radius, 15 deg Positive Rake, 45 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 4230, ANSI Code: R245-12 T3 M-PM 4230, ISO Code: R245-12 T3 M-PM 4230, Right Hand, Carbide, MTCVD Coated, Material Grade: P
ANSI Code R245-12 T3 M-PM 4230 Catalog Number 5743920 Corner Radius 0.059 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Right Hole Diameter 0.1614 in Included Angle 3.96875 mm ISO Code R245-12 T3 M-PM 4230 Lead Angle 45 deg Length 0.5275 in Series CoroMill® 245 Thickness 0.1562 in Type 13.4 mm UPC 11 69826236445 UPC 12 69826236445 Width R245..M-PM Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 0.5275 in Insert Size Right Insert Style R245..M-PM Manufacturer's Grade 4230 Material CARBIDE Material Grade P Maximum Depth of Cut S - Square Rake 15 deg Positive Shape S-Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 20 deg clearance 6.5 mm D cutting 2.05 mm L wiper edge 90 deg included 45 deg major cutting edge 10 mm L effective cutting edge 1-side cutting 20 life cycle state 4 corner S cutting edge condition 4 cutting edge Screw clamp mounting 0.1 to 0.28 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | R245-12 T3 M-PM 4230 |
| Catalog Number | 5743920 |
| Corner Radius | 0.059 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1614 in |
| Included Angle | 3.96875 mm |
| ISO Code | R245-12 T3 M-PM 4230 |
| Lead Angle | 45 deg |
| Length | 0.5275 in |
| Series | CoroMill® 245 |
| Thickness | 0.1562 in |
| Type | 13.4 mm |
| UPC 11 | 69826236445 |
| UPC 12 | 69826236445 |
| Width | R245..M-PM |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 0.5275 in |
| Insert Size | Right |
| Insert Style | R245..M-PM |
| Manufacturer's Grade | 4230 |
| Material | CARBIDE |
| Material Grade | P |
| Maximum Depth of Cut | S - Square |
| Rake | 15 deg Positive |
| Shape | S-Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 20 deg clearance |
| 6.5 mm D cutting |
| 2.05 mm L wiper edge |
| 90 deg included |
| 45 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| S cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
| 0.1 to 0.28 mm/r cutting feed |
