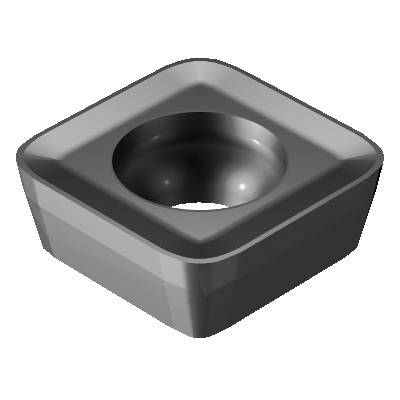

Sandvik Coromant 5853540 CoroMill® 210 Milling Insert, R210-14 05 14E-PM S30T, S-Square, R210..E-PM Insert, Carbide, S30T, R210-14 05 14E-PM S30T
R210 Milling Inserts
638601
MFG #: 5853540
Sandvik Coromant
31.01000
/ ea
- Alternate Catalog Number: R210-14 05 14E-PM S30T
- ANSI Code: R210-14 05 14E-PM S30T
- Catalog Number: 5853540
- Corner Radius: 0.0551 in
- Country of Origin: JP
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.2244 in
- ISO Code: R210-14 05 14E-PM S30T
- Item Group: 350
- Lead Angle: 80 deg
- Length: 0.5708 in
- Material Application: Titanium Alloy
- Series: CoroMill® 210
- Thickness: 0.207 in
- Type: 1.4 mm
- UPC 11: 69826251828
- UPC 12: 69826251828
- Warranty: 5.26 mm
- Width: R210..E-PM
- Width UOM: in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: PM
- Inscribed Circle: 0.5748 in
- Insert Size: S - Square
- Insert Style: R210..E-PM
- Manufacturer's Grade: S30T
- Material: Carbide
- Material Grade: S
- Rake: Positive
- Shape: S-Square
Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..E-PM Insert, S-Square, 0.5748 in Inscribed Circle, 0.207 in Thickness, 0.5708 in Length, PM Chipbreaker, 0.0551 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: S30T, ANSI Code: R210-14 05 14E-PM S30T, ISO Code: R210-14 05 14E-PM S30T, Neutral Hand, Carbide, PVD Coated, Material Grade: S
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 1.9 mm D cutting |
| 0.71 mm L wiper edge |
| 50 mm wiper edge radius |
| 90 deg included |
| 10 deg major cutting edge |
| 10.83 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
