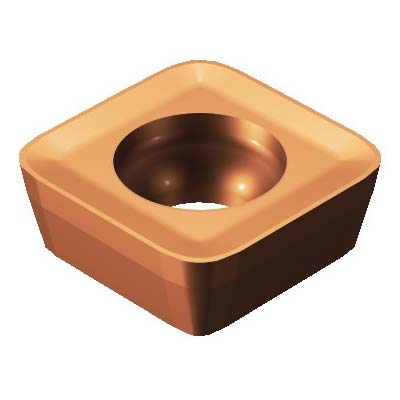

Sandvik Coromant 5742736 CoroMill® 210 Milling Insert, R210-09 04 14E-PM 1030 ANSI, S-Square, R210..E-PM Insert, Carbide, 1030
R210 Milling Inserts
398109
MFG #: 5742736
Sandvik Coromant
19.51000
/ ea
- ANSI Code: R210-09 04 14E-PM 1030
- Catalog Number: 5742736
- Corner Radius: 0.0551 in
- Country of Origin: JP
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.1653 in
- Included Angle: S - Square
- ISO Code: R210-09 04 14E-PM 1030
- Lead Angle: 80 deg
- Length: 0.37 in
- Material Application: Hardened Steel, Stainless Steel and Titanium Alloy
- Series: CoroMill® 210
- Thickness: 0.1771 in
- Type: S to Square
- UPC 11: 69826235314
- UPC 12: 69826235314
- Width: 9.4 mm
- Width UOM: in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: PM
- Inscribed Circle: 0.374 in
- Insert Size: 4.2 mm
- Insert Style: R210..E-PM
- Manufacturer's Grade: 1030
- Material: Carbide
- Material Grade: H/M/P/S
- Rake: Positive
- Shape: S-Square
Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..E-PM Insert, S-Square, 0.374 in Inscribed Circle, 0.1771 in Thickness, 0.37 in Length, PM Chipbreaker, 0.0551 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.1653 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: R210-09 04 14E-PM 1030, ISO Code: R210-09 04 14E-PM 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: H/M/P/S
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 1 mm D cutting |
| 0.66 mm L wiper edge |
| 50 mm wiper edge radius |
| 90 deg included |
| 10 deg major cutting edge |
| 5.77 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
