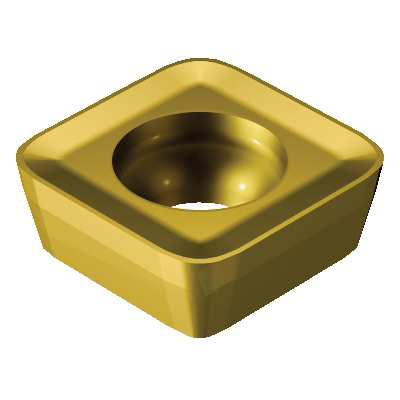

Sandvik Coromant 5742578 CoroMill® 210 Milling Insert, R210-14 05 14E-MM 2030, S-Square, R210..E-MM Insert, Carbide, 2030, R210-14 05 14E-MM 2030
Custom_Product_Images_Illustration
Sandvik Coromant 5742578 CoroMill® 210 Milling Insert, R210-14 05 14E-MM 2030, S-Square, R210..E-MM Insert, Carbide, 2030, R210-14 05 14E-MM 2030
SKU1233262
MFGR #5742578
Your Cost: $35.54/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..E-MM Insert, S-Square, 0.5748 in Inscribed Circle, 0.207 in Thickness, 0.5708 in Length, MM Chipbreaker, 0.0551 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 2030, ANSI Code: R210-14 05 14E-MM 2030, ISO Code: R210-14 05 14E-MM 2030, Neutral Hand, Carbide, PVD Coated, Material Grade: M/P/S
Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..E-MM Insert, S-Square, 0.5748 in Inscribed Circle, 0.207 in Thickness, 0.5708 in Length, MM Chipbreaker, 0.0551 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 2030, ANSI Code: R210-14 05 14E-MM 2030, ISO Code: R210-14 05 14E-MM 2030, Neutral Hand, Carbide, PVD Coated, Material Grade: M/P/S
Alternate Catalog Number R210-14 05 14E-MM 2030 ANSI Code R210-14 05 14E-MM 2030 Catalog Number 5742578 Corner Radius 0.0551 in Country of Origin JP Finish PVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2244 in ISO Code R210-14 05 14E-MM 2030 Item Group 350 Lead Angle 80 deg Length 0.5708 in Series CoroMill® 210 Thickness 0.207 in Type 80 deg UPC 11 69826235321 Width 14.6 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MM Inscribed Circle 0.5748 in Insert Size MM Insert Style R210..E-MM Manufacturer's Grade 2030 Material Carbide Material Grade M/P/S Rake Positive Shape S-Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 7 deg clearance 1.9 mm D cutting 0.71 mm L wiper edge 50 mm wiper edge radius 90 deg included 10 deg major cutting edge 10.83 mm L effective cutting edge 1-side cutting 20 life cycle state 4 corner E cutting edge condition 4 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | R210-14 05 14E-MM 2030 |
| ANSI Code | R210-14 05 14E-MM 2030 |
| Catalog Number | 5742578 |
| Corner Radius | 0.0551 in |
| Country of Origin | JP |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2244 in |
| ISO Code | R210-14 05 14E-MM 2030 |
| Item Group | 350 |
| Lead Angle | 80 deg |
| Length | 0.5708 in |
| Series | CoroMill® 210 |
| Thickness | 0.207 in |
| Type | 80 deg |
| UPC 11 | 69826235321 |
| Width | 14.6 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MM |
| Inscribed Circle | 0.5748 in |
| Insert Size | MM |
| Insert Style | R210..E-MM |
| Manufacturer's Grade | 2030 |
| Material | Carbide |
| Material Grade | M/P/S |
| Rake | Positive |
| Shape | S-Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 1.9 mm D cutting |
| 0.71 mm L wiper edge |
| 50 mm wiper edge radius |
| 90 deg included |
| 10 deg major cutting edge |
| 10.83 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
