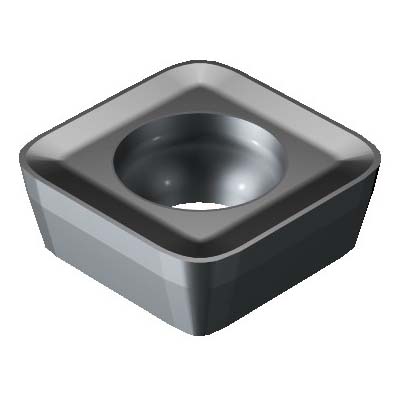

Sandvik Coromant 5742576 CoroMill® 210 Milling Insert, R210-14 05 14E-KM 3040, S-Square, R210..E-KM Insert, Carbide, 3040, R210-14 05 14E-KM 3040
R210 Milling Inserts
1233264
MFG #: 5742576
Sandvik Coromant
29.29000
/ ea
- Alternate Catalog Number: R210-14 05 14E-KM 3040
- ANSI Code: R210-14 05 14E-KM 3040
- Catalog Number: 5742576
- Corner Radius: 0.0551 in
- Country of Origin: JP
- Finish: MTCVD Coated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.2244 in
- ISO Code: R210-14 05 14E-KM 3040
- Item Group: 350
- Lead Angle: 80 deg
- Length: 0.5708 in
- Material Application: Hardened Steel, Cast Iron and Steel
- Series: CoroMill® 210
- Thickness: 0.207 in
- Type: S - Square
- UPC 11: 69826235319
- Width: R210-14 05 14E-KM 3040
- Width UOM: in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: KM
- Inscribed Circle: 0.5748 in
- Insert Size: R210..E-KM
- Insert Style: R210..E-KM
- Manufacturer's Grade: 3040
- Material: Carbide
- Material Grade: H/K/P
- Maximum Depth of Cut: 5.26 mm
- Rake: Positive
- Shape: S-Square
Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..E-KM Insert, S-Square, 0.5748 in Inscribed Circle, 0.207 in Thickness, 0.5708 in Length, KM Chipbreaker, 0.0551 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 3040, ANSI Code: R210-14 05 14E-KM 3040, ISO Code: R210-14 05 14E-KM 3040, Neutral Hand, Carbide, MTCVD Coated, Material Grade: H/K/P
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 1.9 mm D cutting |
| 0.71 mm L wiper edge |
| 50 mm wiper edge radius |
| 90 deg included |
| 10 deg major cutting edge |
| 10.83 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
