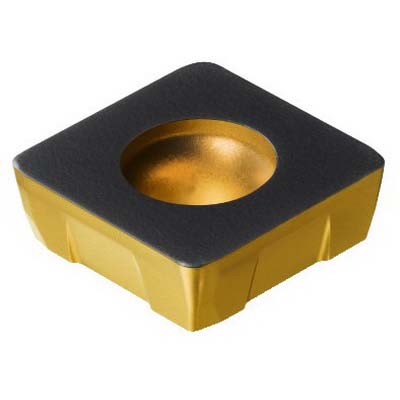

Sandvik Coromant 5742573 CoroMill® 210 Milling Insert, R210-14 05 12M-PM 4240 ANSI, S-Square, R210..M-PM Insert, Carbide, 4240
R210 Milling Inserts
1233248
MFG #: 5742573
Sandvik Coromant
18.72000
/ ea
- ANSI Code: R210-14 05 12M-PM 4240
- Catalog Number: 5742573
- Corner Radius: 0.0393 in
- Country of Origin: US
- Finish: MTCVD Coated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Right
- Hole Diameter: 0.2244 in
- Includes: S - Square
- ISO Code: R210-14 05 12M-PM 4240
- Lead Angle: 80 deg
- Length: 0.5708 in
- Series: CoroMill® 210
- Thickness: 0.1874 in
- Type: S to Square
- UPC 11: 69826233370
- Warranty: 4.7625 mm
- Width: 80 deg
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: PM
- Inscribed Circle: 0.5708 in
- Insert Size: Carbide
- Insert Style: R210..M-PM
- Manufacturer's Grade: 4240
- Material: Carbide
- Material Grade: P
- Rake: Positive
- Shape: S-Square
Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..M-PM Insert, S-Square, 0.5708 in Inscribed Circle, 0.1874 in Thickness, 0.5708 in Length, PM Chipbreaker, 0.0393 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: R210-14 05 12M-PM 4240, ISO Code: R210-14 05 12M-PM 4240, Right Hand, Carbide, MTCVD Coated, Material Grade: P
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 2 mm D cutting |
| 0.77 mm L wiper edge |
| 90 deg included |
| 10 deg major cutting edge |
| 11.3 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
