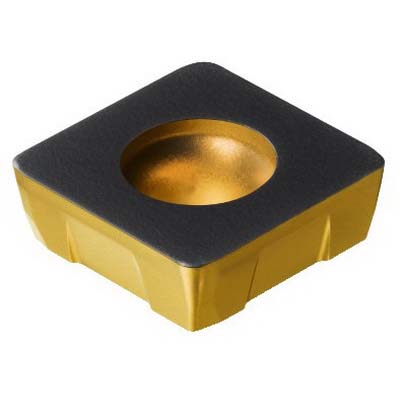

Sandvik Coromant 5742556 CoroMill® 210 Milling Insert, R210-14 05 12M-PM 4220, S-Square, R210..M-PM Insert, Carbide, 4220, R210-14 05 12M-PM 4220
Custom_Product_Images_Illustration
Sandvik Coromant 5742556 CoroMill® 210 Milling Insert, R210-14 05 12M-PM 4220, S-Square, R210..M-PM Insert, Carbide, 4220, R210-14 05 12M-PM 4220
SKU1114617
MFGR #5742556
Your Cost: $22.41/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..M-PM Insert, S-Square, 0.5708 in Inscribed Circle, 0.1874 in Thickness, 0.5708 in Length, PM Chipbreaker, 0.0393 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 4220, ANSI Code: R210-14 05 12M-PM 4220, ISO Code: R210-14 05 12M-PM 4220, Right Hand, Carbide, MTCVD Coated, Material Grade: H/K/P
Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..M-PM Insert, S-Square, 0.5708 in Inscribed Circle, 0.1874 in Thickness, 0.5708 in Length, PM Chipbreaker, 0.0393 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 4220, ANSI Code: R210-14 05 12M-PM 4220, ISO Code: R210-14 05 12M-PM 4220, Right Hand, Carbide, MTCVD Coated, Material Grade: H/K/P
Alternate Catalog Number R210-14 05 12M-PM 4220 ANSI Code R210-14 05 12M-PM 4220 Catalog Number 5742556 Corner Radius 0.0393 in Country of Origin US Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Right Hole Diameter 0.2244 in ISO Code R210-14 05 12M-PM 4220 Item Group 350 Lead Angle 80 deg Length 0.5708 in Relief Angle 4.7625 mm Series CoroMill® 210 Thickness 0.1874 in Type 80 deg UPC 11 69826240010 UPC 12 69826240010 Width 14.5 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 0.5708 in Insert Size S - Square Insert Style R210..M-PM Manufacturer's Grade 4220 Material Carbide Material Grade H/K/P Rake Positive Shape S-Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 7 deg clearance 2 mm D cutting 0.77 mm L wiper edge 90 deg included 10 deg major cutting edge 11.3 mm L effective cutting edge 1-side cutting 20 life cycle state 4 corner E cutting edge condition 4 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R210-14 05 12M-PM 4220 |
| ANSI Code | R210-14 05 12M-PM 4220 |
| Catalog Number | 5742556 |
| Corner Radius | 0.0393 in |
| Country of Origin | US |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.2244 in |
| ISO Code | R210-14 05 12M-PM 4220 |
| Item Group | 350 |
| Lead Angle | 80 deg |
| Length | 0.5708 in |
| Relief Angle | 4.7625 mm |
| Series | CoroMill® 210 |
| Thickness | 0.1874 in |
| Type | 80 deg |
| UPC 11 | 69826240010 |
| UPC 12 | 69826240010 |
| Width | 14.5 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 0.5708 in |
| Insert Size | S - Square |
| Insert Style | R210..M-PM |
| Manufacturer's Grade | 4220 |
| Material | Carbide |
| Material Grade | H/K/P |
| Rake | Positive |
| Shape | S-Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 2 mm D cutting |
| 0.77 mm L wiper edge |
| 90 deg included |
| 10 deg major cutting edge |
| 11.3 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
