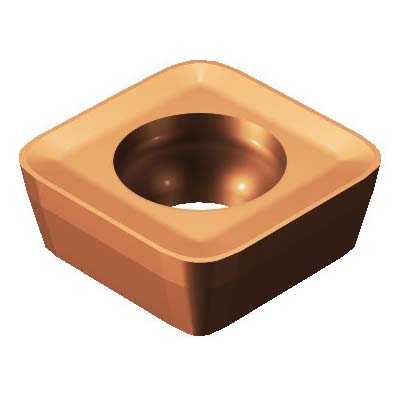

Sandvik Coromant 5742517 CoroMill® 210 Milling Insert, R210-14 05 14E-PM 1030, S-Square, R210..E-PM Insert, Carbide, 1030, R210-14 05 14E-PM 1030
R210 Milling Inserts
581306
MFG #: 5742517
Sandvik Coromant
23.97000
/ ea
- ANSI Code: R210-14 05 14E-PM 1030
- Catalog Number: 5742517
- Corner Radius: 0.0551 in
- Country of Origin: US
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.2244 in
- Includes: 5.26 mm
- ISO Code: R210-14 05 14E-PM 1030
- Lead Angle: 80 deg
- Length: 0.5708 in
- Material Application: Hardened Steel, Stainless Steel and Titanium Alloy
- Series: CoroMill® 210
- Thickness: 0.207 in
- Type: Carbide
- UPC 11: 69826235323
- UPC 12: 69826235323
- Warranty: S - Square
- Width: PM
- Width UOM: in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: PM
- Inscribed Circle: 0.5748 in
- Insert Size: 1.4 mm
- Insert Style: R210..E-PM
- Manufacturer's Grade: 1030
- Material: Carbide
- Material Grade: H/M/P/S
- Rake: Positive
- Shape: S-Square
Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..E-PM Insert, S-Square, 0.5748 in Inscribed Circle, 0.207 in Thickness, 0.5708 in Length, PM Chipbreaker, 0.0551 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: R210-14 05 14E-PM 1030, ISO Code: R210-14 05 14E-PM 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: H/M/P/S
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 1.9 mm D cutting |
| 0.71 mm L wiper edge |
| 50 mm wiper edge radius |
| 90 deg included |
| 10 deg major cutting edge |
| 10.83 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
