Sandvik Coromant

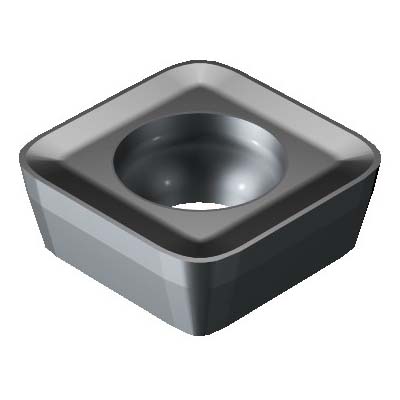

Sandvik Coromant 5742513 CoroMill® 210 Milling Insert, R210-14 05 14E-PM 1010, S-Square, R210..E-PM Insert, Carbide, 1010, R210-14 05 14E-PM 1010
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5742513 CoroMill® 210 Milling Insert, R210-14 05 14E-PM 1010, S-Square, R210..E-PM Insert, Carbide, 1010, R210-14 05 14E-PM 1010
SKU1233265
MFGR #5742513
Your Cost: $32.15/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..E-PM Insert, S-Square, 0.5748 in Inscribed Circle, 0.207 in Thickness, 0.5708 in Length, PM Chipbreaker, 0.0551 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 1010, ANSI Code: R210-14 05 14E-PM 1010, ISO Code: R210-14 05 14E-PM 1010, Neutral Hand, Carbide, PVD Coated, Material Grade: H/S
Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..E-PM Insert, S-Square, 0.5748 in Inscribed Circle, 0.207 in Thickness, 0.5708 in Length, PM Chipbreaker, 0.0551 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.2244 in Hole Dia, Manufacturer's Grade: 1010, ANSI Code: R210-14 05 14E-PM 1010, ISO Code: R210-14 05 14E-PM 1010, Neutral Hand, Carbide, PVD Coated, Material Grade: H/S
Alternate Catalog Number R210-14 05 14E-PM 1010 ANSI Code R210-14 05 14E-PM 1010 Catalog Number 5742513 Corner Radius 0.0551 in Country of Origin JP Finish PVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2244 in Includes S - Square ISO Code R210-14 05 14E-PM 1010 Item Group 350 Lead Angle 80 deg Length 0.5708 in Series CoroMill® 210 Thickness 0.207 in Type R210-14 05 14E-PM 1010 UPC 11 69826244018 Width H, S Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 0.5748 in Insert Size 5.26 mm Insert Style R210..E-PM Manufacturer's Grade 1010 Material Carbide Material Grade H/S Rake Positive Shape S-Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 7 deg clearance 1.9 mm D cutting 0.71 mm L wiper edge 50 mm wiper edge radius 90 deg included 10 deg major cutting edge 10.83 mm L effective cutting edge 1-side cutting 20 life cycle state 4 corner E cutting edge condition 4 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | R210-14 05 14E-PM 1010 |
| ANSI Code | R210-14 05 14E-PM 1010 |
| Catalog Number | 5742513 |
| Corner Radius | 0.0551 in |
| Country of Origin | JP |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2244 in |
| Includes | S - Square |
| ISO Code | R210-14 05 14E-PM 1010 |
| Item Group | 350 |
| Lead Angle | 80 deg |
| Length | 0.5708 in |
| Series | CoroMill® 210 |
| Thickness | 0.207 in |
| Type | R210-14 05 14E-PM 1010 |
| UPC 11 | 69826244018 |
| Width | H, S |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 0.5748 in |
| Insert Size | 5.26 mm |
| Insert Style | R210..E-PM |
| Manufacturer's Grade | 1010 |
| Material | Carbide |
| Material Grade | H/S |
| Rake | Positive |
| Shape | S-Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 1.9 mm D cutting |
| 0.71 mm L wiper edge |
| 50 mm wiper edge radius |
| 90 deg included |
| 10 deg major cutting edge |
| 10.83 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
