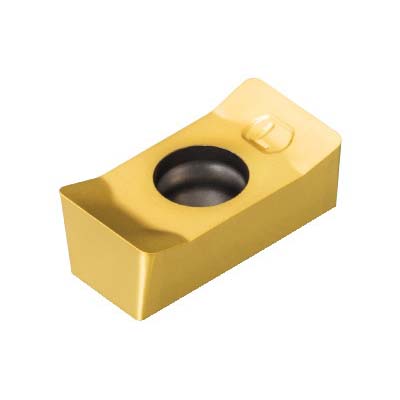

Sandvik Coromant 5737246 CoroMill® 331 Slotting Insert, N331.1A-05 45 08H-WL1025, L-Rectangle, N331.1A..H-WL Insert, Carbide, 1025, N331.1A-05 45 08H-WL1025
N331 Milling Inserts
1204136
MFG #: 5737246
Sandvik Coromant
24.46000
/ ea
- Alternate Catalog Number: N331.1A-05 45 08H-WL1025
- ANSI Code: N331.1A-05 45 08H-WL1025
- Catalog Number: 5737246
- Corner Radius: 0.0314 in
- Country of Origin: SE
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: 0.1141 in
- ISO Code: N331.1A-05 45 08H-WL1025
- Item Group: 350
- Lead Angle: 90 deg
- Length: 0.2559 in
- Material Application: Steel, Stainless Steel and Heat Resistant Super Alloys
- Relief Angle: 9.5 mm
- Series: CoroMill® 331
- Thickness: 0.1751 in
- Type: 4.45 mm
- UPC 11: 69826201814
- UPC 12: 69826201814
- Width: 0.374 in
- Width UOM: in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: WL
- Inscribed Circle: 0.256 in
- Insert Size: L - Rectangle
- Insert Style: N331.1A..H-WL
- Manufacturer's Grade: 1025
- Material: Carbide
- Material Grade: M/P/S
- Rake: Positive
- Shape: L-Rectangle
Sandvik Coromant Slotting Insert, Series: CoroMill® 331, N331.1A..H-WL Insert, L-Rectangle, 0.256 in Inscribed Circle, 0.1751 in Thickness, 0.374 in Width, 0.2559 in Length, WL Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1141 in Hole Dia, Manufacturer's Grade: 1025, ANSI Code: N331.1A-05 45 08H-WL1025, ISO Code: N331.1A-05 45 08H-WL1025, Neutral Hand, Carbide, PVD Coated, Material Grade: M/P/S
- Features
| 0 deg clearance |
| 20 life cycle state |
| 5.7 mm D max cutting |
| 1.2 mm L wiper edge |
| F cutting edge condition |
| 4 edges |
| Light operation |
| 40 to 60 deg countersunk hole and non-flat surface |
| 90 deg included |
| 3 insert mounting style |
| 90 deg cutting edge |
| 5.7 mm L cutting edge effective |
| 05 insert seat |
| H tolerance class insert |
| Screw clamp mounting |
| 0.08 to 0.22 mm/r cutting feed |
| Screw clamp mounting style |
