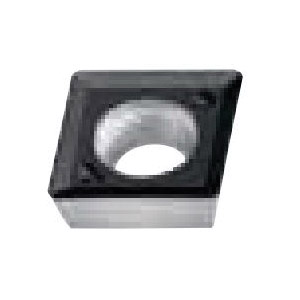

Valenite Tiger-tec® Silver 7057776 Positive Indexable Milling Insert, MPMX080305-F57 WSP45S ANSI, Rhombic, MPMX Insert
MPMX Milling Inserts
PDW~12584595
MFG #: MPMX080305-F57WSP45S
Walter (Valentine)
15.80000
/ ea
- ANSI Code: MPMX080305-F57 WSP45S
- Catalog Number: MPMX080305-F57WSP45S
- Corner Radius: 0.5 mm
- Country of Origin: DE
- Finish: PVD-TiAlN+Al2O3 (Al) Coated
- Gross Weight Per Pack: 1 lb
- Hand of Insert: Neutral
- Hole Diameter: 3.4 mm
- ISO Code: MPMX080305-F57 WSP45S
- Lead Angle: 11 °
- Length: 8.3 mm
- Material Application: Stainless Steel, Steel, Super Alloys and Titanium
- Series: Tiger?tec® Silver
- Sub Brand: Tiger-tec®
- Thickness: 3.18 mm
- Width: 8.3 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: F57
- Inscribed Circle: 8.3 mm
- Insert Size: 080305
- Insert Style: MPMX
- Manufacturer's Grade: WSP45S
- Material: Carbide
- Material Grade: M, P, S
- Rake: Positive
- Shape: Rhombic
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| For good machining conditions |
| Low cutting force |
| Medium feed rates |
| Two waves on the flank face |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 2 cutting edges |
