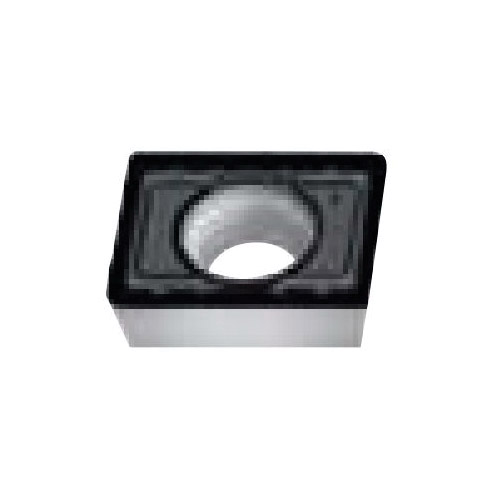

Valenite Tiger-tec® Silver 7057772 Positive Single Sided Indexable Milling Insert, LPMT150612R-D57 WSP45S ANSI, Rhombic
LPMT Milling Inserts
PDW~12584335
MFG #: LPMT150612R-D57WSP45S
Walter (Valentine)
25.20000
/ ea
- ANSI Code: LPMT150612R-D57 WSP45S
- Catalog Number: LPMT150612R-D57WSP45S
- Corner Radius: 1.2 mm
- Country of Origin: DE
- Finish: PVD-TiAlN+Al2O3 (Al) Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Right
- Hole Diameter: 5.5 mm
- ISO Code: LPMT150612R-D57 WSP45S
- Length: 15.88 mm
- Material Application: Steel, Heat Resistant Special Alloys Based on Iron, Nickel and Cobalt, Titanium and Titanium Alloys
- Series: Tiger?tec® Silver
- Sub Brand: Tiger-tec®
- Thickness: 6.35 mm
- Type: Single Sided
- Width: 12.7 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: D57
- Inscribed Circle: 12.7 mm
- Insert Size: 150612
- Insert Style: LPMT
- Manufacturer's Grade: WSP45S
- Material: Carbide
- Material Grade: P, S
- Rake: Positive
- Shape: Rhombic
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| For average machining conditions |
| Can be used universally |
| One wave on the flank face |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
| 88 deg nose |
