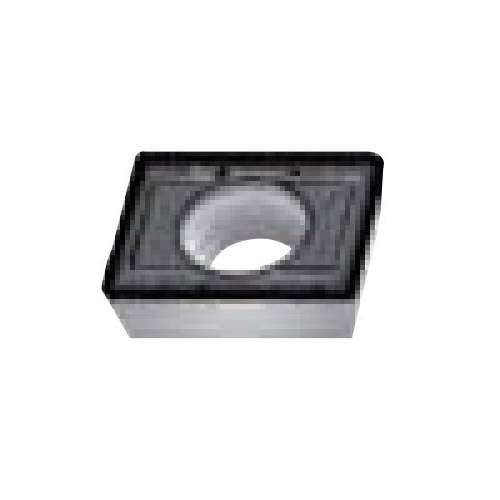

Valenite Tiger-tec® Silver 5918254 Positive Single Sided Indexable Milling Insert, LPGT150412R-F55 WKP35S ANSI, Rhombic
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 5918254 Positive Single Sided Indexable Milling Insert, LPGT150412R-F55 WKP35S ANSI, Rhombic
SKUPDW~9952387
MFGR #LPGT150412R-F55WKP35S
Your Cost: $29.90/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code LPGT150412R-F55 WKP35S Catalog Number LPGT150412R-F55WKP35S Corner Radius 1.2 mm Country of Origin DE Finish CVD-TiCN+Al2O3+TiCN Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Right Hole Diameter 5.5 mm ISO Code LPGT150412R-F55 WKP35S Length 15.88 mm Material Application Cast Iron and Steel Series Tiger?tec® Silver Sub Brand Tiger-tec® Thickness 4.76 mm Width 12.7 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker F55 Inscribed Circle 12.7 mm Insert Size 150412 Insert Style LPGT Manufacturer's Grade WKP35S Material Carbide Material Grade K, P Rake Positive Shape Rhombic Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection +/-0.025 mm inscribed circle tolerance +/-0.13 mm thickness tolerance 1.6 mm width face chamfer 2 cutting edges 40 to 60 deg double countersink hole
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | LPGT150412R-F55 WKP35S |
| Catalog Number | LPGT150412R-F55WKP35S |
| Corner Radius | 1.2 mm |
| Country of Origin | DE |
| Finish | CVD-TiCN+Al2O3+TiCN Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Right |
| Hole Diameter | 5.5 mm |
| ISO Code | LPGT150412R-F55 WKP35S |
| Length | 15.88 mm |
| Material Application | Cast Iron and Steel |
| Series | Tiger?tec® Silver |
| Sub Brand | Tiger-tec® |
| Thickness | 4.76 mm |
| Width | 12.7 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | F55 |
| Inscribed Circle | 12.7 mm |
| Insert Size | 150412 |
| Insert Style | LPGT |
| Manufacturer's Grade | WKP35S |
| Material | Carbide |
| Material Grade | K, P |
| Rake | Positive |
| Shape | Rhombic |
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.6 mm width face chamfer |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
