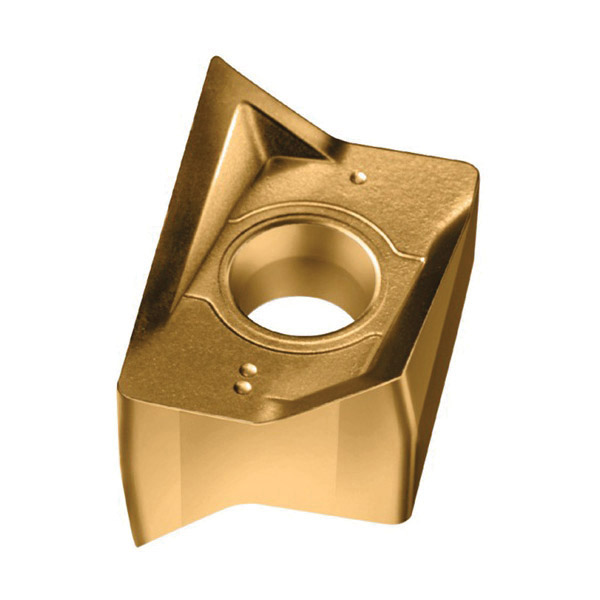

Valenite Tiger-tec® Gold 7170541 Negative Indexable Milling Insert, LNGX130716R-L55 WKP35G ANSI, Rhombic, LNGX Insert
LNGX Milling Inserts
PDW~12584270
MFG #: LNGX130716R-L55WKP35G
Walter (Valentine)
30.80000
/ ea
- ANSI Code: LNGX130716R-L55 WKP35G
- Catalog Number: LNGX130716R-L55WKP35G
- Chipbreaker: L55
- Corner Radius: 1.6 mm
- Country of Origin: DE
- Finish: CVD-TiAlN+TiN Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Right
- Hole Diameter: 4.4 mm
- ISO Code: LNGX130716R-L55 WKP35G
- Lead Angle: 0 °
- Length: 13.7 mm
- Manufacturer's Grade: WKP35G
- Material Application: Cast Iron and Steel
- Series: Tiger?tec® Gold
- Sub Brand: Tiger-tec®
- Thickness: 7.74 mm
- Type: Single Sided
- Width: 11 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Inscribed Circle: 0.433 in
- Insert Size: 130716
- Insert Style: LNGX
- Material: Carbide
- Material Grade: K, P
- Rake: Negative
- Shape: Rhombic
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
