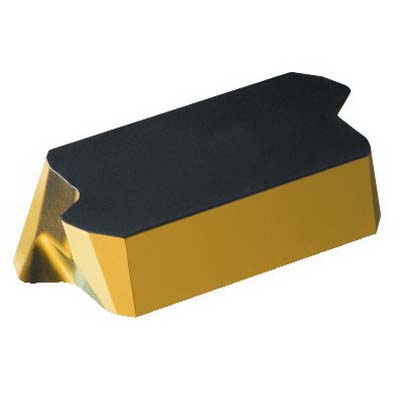

Sandvik Coromant 5735227 T-Max® 45 Milling Insert, LNCX 18 06 AZ R-11 4240 ANSI, L-Rectangle, LNCX Insert, Carbide, 4240
Custom_Product_Images_Illustration
Sandvik Coromant 5735227 T-Max® 45 Milling Insert, LNCX 18 06 AZ R-11 4240 ANSI, L-Rectangle, LNCX Insert, Carbide, 4240
SKU1254221
MFGR #5735227
Your Cost: $42.96/ea
List: Sandvik Coromant Milling Insert, Series: T-Max® 45, LNCX Insert, L-Rectangle, 0.709 in Inscribed Circle, 0.2519 in Thickness, 0.3937 in Width, R11 Chipbreaker, 0 deg Rake, 45 deg Lead Angle, Manufacturer's Grade: 4240, ANSI Code: LNCX 18 06 AZ R-11 4240, ISO Code: LNCX 18 06 AZ R-11 4240, Right Hand, Carbide, MTCVD Coated, Material Grade: K/M/P
Sandvik Coromant Milling Insert, Series: T-Max® 45, LNCX Insert, L-Rectangle, 0.709 in Inscribed Circle, 0.2519 in Thickness, 0.3937 in Width, R11 Chipbreaker, 0 deg Rake, 45 deg Lead Angle, Manufacturer's Grade: 4240, ANSI Code: LNCX 18 06 AZ R-11 4240, ISO Code: LNCX 18 06 AZ R-11 4240, Right Hand, Carbide, MTCVD Coated, Material Grade: K/M/P
Alternate Catalog Number LNCX 18 06 AZ R-11 4240 ANSI Code LNCX 18 06 AZ R-11 4240 Catalog Number 5735227 Corner Radius K, M, P Country of Origin JP Finish MTCVD Coated Gross Weight Per Pack 0.0500 lb Hand of Insert Right Hole Diameter 10 mm Included Angle 6.4 mm Includes L - Rectangle ISO Code LNCX 18 06 AZ R-11 4240 Item Group 350 Lead Angle 45 deg Length 0 deg Negative Material Application Cast Iron, Stainless Steel and Steel Series T-Max® 45 Thickness 0.2519 in Type 10 mm UPC 11 69826242235 Width 0.3937 in Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker R11 Inscribed Circle 0.709 in Insert Size MTCVD Coated Insert Style LNCX Manufacturer's Grade 4240 Material Carbide Material Grade K/M/P Rake 0 deg Shape L-Rectangle Flat surface clamping interface 0 deg clearance 12 mm D cutting 2 mm L wiper edge 125 mm wiper edge radius 90 deg included 44 deg major cutting edge 18.77 mm L effective cutting edge 2-side cutting 20 life cycle state 2 corner E cutting edge condition 4 cutting edge Without fixing hole mounting 0.1 to 0.99 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | LNCX 18 06 AZ R-11 4240 |
| ANSI Code | LNCX 18 06 AZ R-11 4240 |
| Catalog Number | 5735227 |
| Corner Radius | K, M, P |
| Country of Origin | JP |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0500 lb |
| Hand of Insert | Right |
| Hole Diameter | 10 mm |
| Included Angle | 6.4 mm |
| Includes | L - Rectangle |
| ISO Code | LNCX 18 06 AZ R-11 4240 |
| Item Group | 350 |
| Lead Angle | 45 deg |
| Length | 0 deg Negative |
| Material Application | Cast Iron, Stainless Steel and Steel |
| Series | T-Max® 45 |
| Thickness | 0.2519 in |
| Type | 10 mm |
| UPC 11 | 69826242235 |
| Width | 0.3937 in |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | R11 |
| Inscribed Circle | 0.709 in |
| Insert Size | MTCVD Coated |
| Insert Style | LNCX |
| Manufacturer's Grade | 4240 |
| Material | Carbide |
| Material Grade | K/M/P |
| Rake | 0 deg |
| Shape | L-Rectangle |
| Flat surface clamping interface |
| 0 deg clearance |
| 12 mm D cutting |
| 2 mm L wiper edge |
| 125 mm wiper edge radius |
| 90 deg included |
| 44 deg major cutting edge |
| 18.77 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 4 cutting edge |
| Without fixing hole mounting |
| 0.1 to 0.99 mm/r cutting feed |
